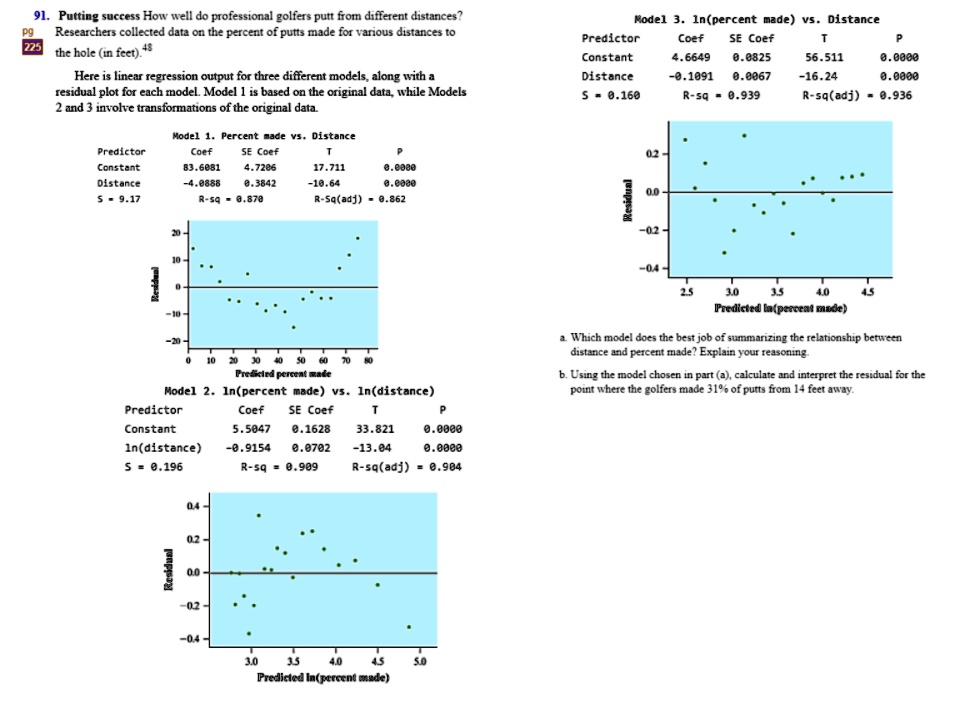

So in part a, we're looking at those three models.
00:04
And we see that for that model one, that that residual plot definitely has a curved pattern.
00:12
And the second model has a curved pattern as well for the residual plot.
00:19
It goes downward.
00:20
So both of these are not very good as far as that model of linearity.
00:27
And the third model, there does appear to be somewhat of a pattern that the residuals seem to be getting smaller.
00:33
But this one would be the best.
00:36
So that would be the model that i would pick for that.
00:40
Which model has the best job? and again, because the other two look worse.
00:45
There is scattering of the dots around.
00:48
And i do see a little lessening, again, that they are getting closer to the model as the residuals are getting closer to zero.
00:57
But still, i would pick that one to be the best.
01:00
Now on part b, we are asked to, using the model that we chose, calculate and interpret the residual for a golfer who made 31 % of the putts from 14 feet away.
01:13
And so we have 31 % of the putts from 14 feet away.
01:24
And we want to calculate that residual.
01:26
And we see that the percent made is the x variable.
01:30
And our model, looking at the coefficients, we have the y hat equal to, and then the coefficient for the constant is 4 .6649.
01:47
4 .6649.
01:50
And the y intercept is negative .1091.
01:59
I'm sorry, that's the slope.
02:01
I think i just set it incorrectly...
