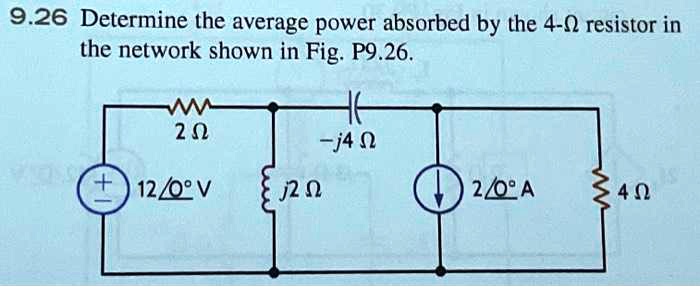

Determine the average power absorbed by the 4-? resistor in the network shown in Fig. P9.26. 2 ? 12?0° V -j4 ? j2 ? 2?0° A 4 ?
Added by Josefina G.
Close
Step 1
Step 1: Apply nodal analysis to find the voltage values at nodes V1 and V2 in the circuit. Show more…
Show all steps
