For the cantilever beam and loading shown, determine (a) the equation of the elastic curve for portion AB of the beam, (b) the deflection at B, (c) the slope at B. Fig. P9.5 Answer (a) y = w(-4x^4 + 12ax^3 - 9a^2x^2)/96 EI. (b) wa^4/96EI ?. (c) wa^3/48EI ?.
Added by Sebastian N.
Close
Step 1
(a) Show more…
Show all steps
Your feedback will help us improve your experience
Adi S and 55 other Physics 101 Mechanics educators are ready to help you.
Ask a new question
Labs
Want to see this concept in action?
Explore this concept interactively to see how it behaves as you change inputs.
Key Concepts
Recommended Videos

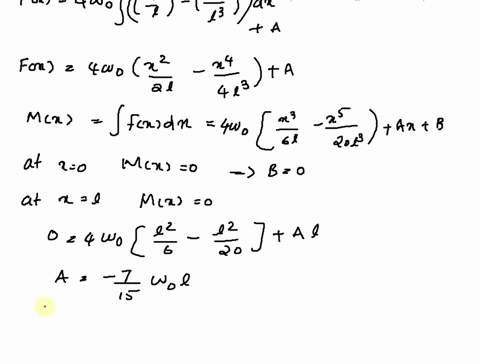

For the beam and loading shown, determine (a) the equation of the elastic curve, (b) the slope at end A, (c) the deflection at the midpoint of the span: i = 4w * o * L^3 / (B)
Madhur L.
9.3-14 Derive the equations of the deflection curve for a cantilever beam AB carrying a uniform load of intensity q over part of the span (see figure). Also, determine the deflection δ at the end of the beam. (Note: Use the second-order differential equation of the deflection curve.)

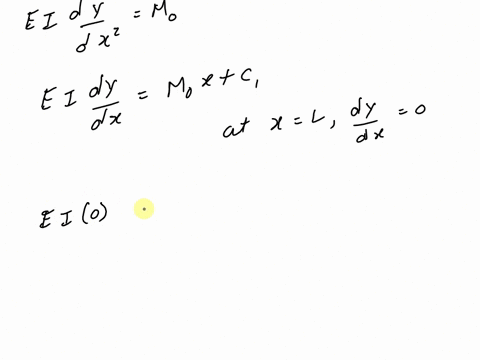

For the loading shown, determine $(a)$ the equation of the elastic curve for the cantilever beam $A B,(b)$ the deflection at the free end, $(c)$ the slope at the free end.
