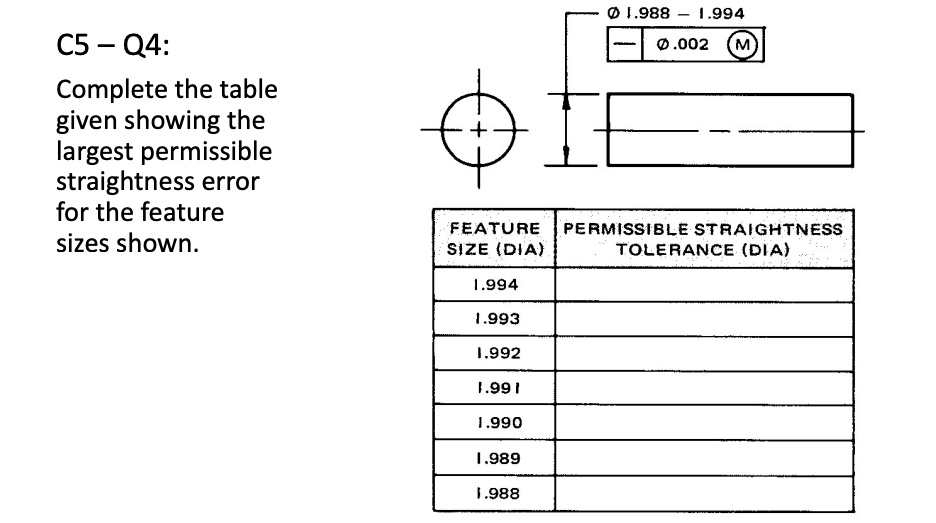

C5 - Q4: Complete the table given showing the largest permissible straightness error for the feature sizes shown. FEATURE SIZE (DIA) 1.994 1.993 1.992 1.991 1.990 1.989 1.988 \phi 1.988 - 1.994 -\phi 0.002 M PERMISSIBLE STRAIGHTNESS TOLERANCE (DIA)
Added by Mark G.
Close
Step 1
The drawing shows a cylindrical feature with a diameter tolerance of 1.988-1.994 inches and a straightness tolerance of 0.002 inches indicated by the geometric tolerance symbol (M). Show more…
