A 1800-turn solenoid has a cross-sectional area equal to 2.0 cm² and a length equal to 30 cm. The solenoid carries a current of 4.0 A. (a) Calculate the magnetic energy stored in the solenoid using $U = frac{1}{2}LI^2$, where $L = mu_0n^2Al$. mJ (b) Divide your answer in part (a) by the volume of the region inside the solenoid to find the magnetic energy per unit volume in the solenoid. kJ/m³ (c) Check your Part (b) result by computing the magnetic energy density from $u_m = frac{B^2}{2mu_0}$ where $B = mu_0nI$. kJ/m³
Added by Agust-N R.
Close
Step 1
0 cm^2 = \(4.0 \times 10^{-4}\) m^2 Length, L = 30 cm = 0.3 m Current, I = 4.0 A Substitute the values into the formula: \(U = \frac{1}{2} \times (4\pi \times 10^{-7} \times 1800 \times 4.0 \times 10^{-4} \times 4.0^2) \times 0.3\) Show more…
Show all steps
Your feedback will help us improve your experience
Khoobchandra Agrawal and 86 other Physics 101 Mechanics educators are ready to help you.
Ask a new question
Labs
Want to see this concept in action?
Explore this concept interactively to see how it behaves as you change inputs.
Key Concepts
Recommended Videos

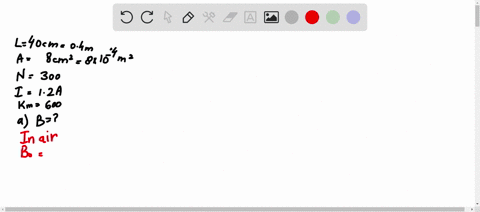

A solenoid is $40 \mathrm{~cm}$ long, has a cross-sectional area of $8.0 \mathrm{~cm}^{2}$, and is wound with 300 turns of wire that carry a current of $1.2 \mathrm{~A}$. The relative permeability of its iron core is 600 . Compute (a) $B$ for an interior point and $(b)$ the flux through the solenoid. (a) From Fig. $31-1(c)$, in air $$ B_{0}=\frac{\mu_{0} N I}{L}=\frac{\left(4 \pi \times 10^{-7} \mathrm{~T} \cdot \mathrm{m} / \mathrm{A}\right)(300)(1.2 \mathrm{~A})}{0.40 \mathrm{~m}}=1.13 \mathrm{mT} $$ and so $B=k_{M} B_{0}=(600)\left(1.13 \times 10^{-3} \mathrm{~T}\right)=0.68 \mathrm{~T}$ (b) Because the field lines are perpendicular to the cross section of the solenoid, $$ \Phi_{M}=B_{\perp} A=B A=(0.68 \mathrm{~T})\left(8.0 \times 10^{-4} \mathrm{~m}^{2}\right)=54 \mu \mathrm{Wb} $$
The magnetic field inside a solenoid is given by B = μ₀NI/l. The induced e. m. f. is given by ξ = -N(ΔΦᴮ/Δt), where ΔΦᴮ = (ΔB)A. The coil has 23 loops, l = 6.0 cm, A = 0.35 m² and the solenoid has only air inside its core. a) Find the magnetic field when the current is 5mA. b) For an induced e. m. f. of 2.0x10⁻¹V to occur in 0.30s what must be the value of ΔΦᴮ? c) Find the energy density stored in the B field per unit volume u = 1/2 (B²/μ₀) when the magnetic field has the value in part a).
Adi S.

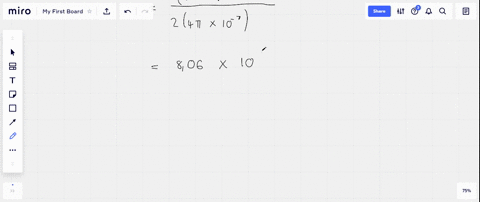

The magnetic field inside a superconducting solenoid is 4.50 T. The solenoid has an inner diameter of 6.20 $\mathrm{cm}$ and a length of $26.0 \mathrm{cm} .$ Determine (a) the magnetic energy density in the field and (b) the energy stored in the magnetic field within the solenoid.
