A 2 ohm resistor and a 4 ohm resistor are connected in parallel to a 6 volt battery. 6V 2 4 The power dissipated by the 2 ohm resistor is: 1. 8 W 2. 18 W 3. none of these 4. 6 W 5. 9 W
Added by Matthew G.
Step 1
The formula for equivalent resistance \( R_{eq} \) in parallel is given by: \[ \frac{1}{R_{eq}} = \frac{1}{R_1} + \frac{1}{R_2} \] Substituting the values: \[ \frac{1}{R_{eq}} = \frac{1}{2} + \frac{1}{4} \] Show more…
Show all steps
Your feedback will help us improve your experience
Madhur L and 79 other Physics 101 Mechanics educators are ready to help you.
Ask a new question
Labs
Want to see this concept in action?
Explore this concept interactively to see how it behaves as you change inputs.
Key Concepts
Recommended Videos

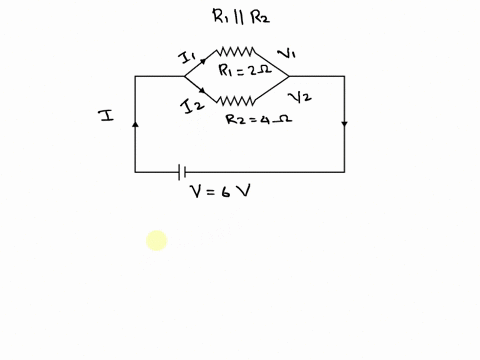

QUESTION 20 1. A 2 ohm resistor and a 4 ohm resistor are connected in parallel to a 6 volt battery. The power dissipated by the 2 ohm resistor is: a. None of the above b. 8 W c. 18 W d. 6 W and. 9 W
Madhur L.

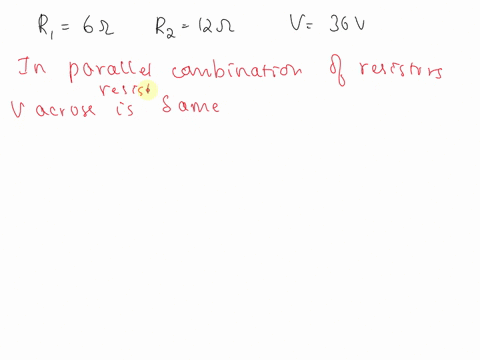

2.0-Ohm and 12-Ohm resistors are connected in parallel to a 36-V battery. What power is dissipated by the 6.0-Ohm resistor? 0.22 kW 48 kW 0.49 kW 24 kW

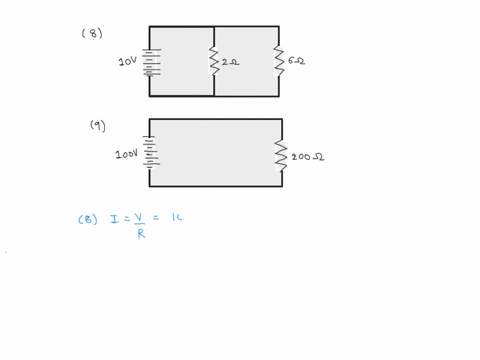

III. MULTIPLE CHOICE 10 V 2 ̩̐ 6 ̩̐ 100 V 200 ̩̐ 8. In the circuit shown above, what is the current through the 2-ohm resistor? A 0.2 A C 0.8 A B 5.0 A D 8.0 A 9. How much power is dissipated by the resistor in the circuit shown above? A 25 watts C 50 watts B 100 watts D 800 watts IV. SOLVING CIRCUITS 10. A 4 ̩̐ and a 6 ̩̐ resistor are connected in series, the current is measured to be 4 A. (a) Draw a diagram of this circuit. (b) What is the voltage drop across the 4 ̩̐ resistor? (c) What is the voltage drop across the 6 ̩̐ resistor? (d) What is the total voltage of the power source? (e) What is the total power dissipated by the circuit?
Maitreya E.
Recommended Textbooks
University Physics with Modern Physics
Physics: Principles with Applications
Fundamentals of Physics
