A 3-phase, 375 kVA, 480V, 50 Hz, wye-connected alternator has an equal positive and negative sequence reactance of 10%. Find the symmetrical fault current if a 3-phase fault occurs at the alternator terminals. 4510.5 A 4620.3 A 4255.2 A 4778.1 A
Added by Enrique F.
Step 1
X1 = 0.1 * Z_base X1 = 0.1 * (375000 VA / (480 V)^2) X1 = 0.1 * 15.625 X1 = 1.5625 ohms Show more…
Show all steps
Your feedback will help us improve your experience
Abid Hussain and 57 other Physics 102 Electricity and Magnetism educators are ready to help you.
Ask a new question
Labs
Want to see this concept in action?
Explore this concept interactively to see how it behaves as you change inputs.
Key Concepts
Recommended Videos
'5. A 3-phase, 50 Hz, star-connected, 1000 KVA, 2300V alternator gives a short-circuit current of 400 A for a certain field excitation. With the same excitation, the open-circuit voltage was 1328 V (phase value). The d.c. resistance between two lines is 0.412 Q. Find effective armature resistance (b) synchronous reactance (c) the full-load voltage regulation at 0.8 p.f: lagging: (Ans. 0.309@/phase (b) 3.319 (c) 49.6%'
Prem B.

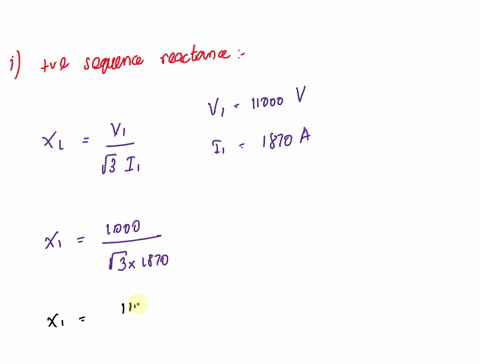

A 50 MVA, 11 kV, three-phase alternator was subjected to different types of faults. The fault currents were: 1870 Amps for three-phase fault, 2590 Amps for L-L fault, and 4130 Amps for L-G fault. The alternator neutral is solidly grounded. Find the three sequence reactances of the alternator.
Supreeta N.
A three-phase $a b c$-sequence wye-connected source with $\mathbf{V}_{a n}=220 / 0^{\circ} \mathrm{V}$ rms supplies power to a wye-connected load that consumes $50 \mathrm{kW}$ of power in each phase at a pf of 0.8 lagging. Three capacitors are found that each have an impedance of $-j 2.0 \Omega,$ and they are connected in parallel with the load in a wye configuration. Determine the power factor of the combined load as seen by the source.
