A 3-phase, 60-Hz induction motor has 8 poles and operates with a slip of 0.05 for a certain load. Compute the speed of the rotor field with respect to the stator field.
Added by Dennis B.
Step 1
Given: Frequency, f = 60 Hz Number of poles, p = 8 Synchronous speed (Ns) = 120f / p Ns = 120 * 60 / 8 Ns = 900 rpm Show more…
Show all steps
Your feedback will help us improve your experience
Prem Bijarniya and 80 other Physics 102 Electricity and Magnetism educators are ready to help you.
Ask a new question
Labs
Want to see this concept in action?
Explore this concept interactively to see how it behaves as you change inputs.
Key Concepts
Recommended Videos

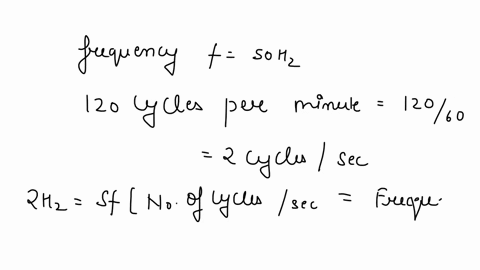

The power input to the rotor of a 440-V, 50 Hz, 6-pole, 3-phase induction motor is 100 kW. The rotor electromotive force is observed to make 120 cycles per minute. Calculate the speed of stator field with respect to rotor.
