A 3-phase transformer is connected Y-Y with power connected to the high side ($V_{HS(line)}$). The low side line voltage $V_{LS(line)}$ is ____. ? $V_{LS(line)} = \frac{V_{HS(line)}\sqrt{3}}{a}$ ? $V_{HS(line)} = \frac{V_{HS(line)}}{a\sqrt{3}}$ ? $V_{LS(line)} = \frac{V_{HS(line)}}{a}$ ? $V_{LS(line)} = V_{HS(line)} \times a$
Added by Mark U.
Close
Step 1
Step 1: For a Y-connected side, line-to-line voltage = sqrt(3) × phase (line-to-neutral) voltage, so V_HS(line) = sqrt(3)·V_HS(phase) and V_LS(line) = sqrt(3)·V_LS(phase). Show more…
Show all steps
Your feedback will help us improve your experience
Adi S and 75 other Physics 102 Electricity and Magnetism educators are ready to help you.
Ask a new question
Labs
Want to see this concept in action?
Explore this concept interactively to see how it behaves as you change inputs.
Key Concepts
Recommended Videos
4. A delta–wye connected transformer is shown in schematic format in Figure 6.15. This transformer is from 600 V (Line-Line), RMS on the ‘H’ side to 208 V (Line-Line), RMS on the ‘X’ side. (Assume VAH is the reference) (a) What is the turns ratio between the ‘H’ side to the ‘X’ side? (b) If the transformer is open on the ‘X’ side but connected to a balanced 600 V, line–line source on the ‘H’ side, draw a phasor diagram showing voltages on the two sides. (c) Now the transformer is loaded by a single 10Ω resistor connected from terminal AX to the neutral (star point) of the ‘X’ side. The ‘H’ side is connected to a 600 V (line–line, RMS) voltage source connected in wye. • What are real and reactive power drawn from each phase of the source on the ‘H’ side? • Draw a phasor diagram showing primary (‘H’ side) voltages and currents.
Adi S.

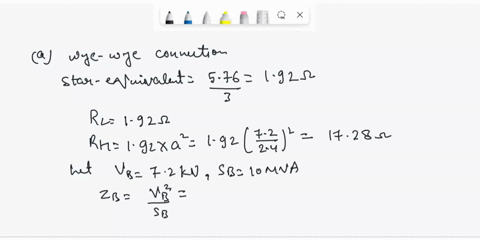

3 Single phase, 10 MVA, 7.2 kV : 2.4 kV transformers each having a total leakage reactance of 8% (at nameplate rating) and negligible resistances; along with 3 single phase resistive loads of 5.76 ̐ (Ohms) each can be connected in various 3 phase configurations. Find the total impedance (transformer plus the resistive load) as viewed from the High voltage side in both Per Unit and Ohms for each of the connections a) and b) listed in the table below: Case | Transformer High Voltage Side | Transformer Low Voltage Side | Resistive Load a) | Wye | Wye | Delta b) | Delta | Wye | Wye Note: Show your work, draw phasors, and state equations/assumptions used to justify results.
Three identical 9 MVA, 7.2 kV/4.16 kV, single-phase transformers are connected in Y on the high-voltage side and delta on the low voltage side. The equivalent series impedance of each transformer referred to the high-voltage side is 0.12+j0.82 ohms/phase. The transformer supplies a balanced three-phase load of 18 MVA, 0.8 power factor lagging at 4.16 kV. Determine the line-to-line voltage at the high-voltage terminals of the transformer.
