A 4 kip load is applied at θ = 45 degrees. Link BD is vertical and supported by a single shear p

Question

Khoobchandra Agrawal · Answer

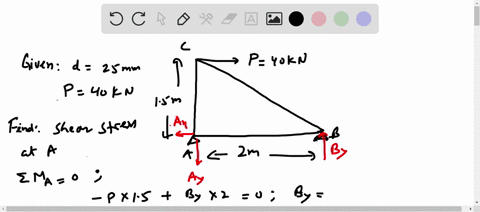

Hi friends, here it is given diameter of each bar to be 25mm 4 speed equal to 40 kilo Newton we

Kratika Bhadauria · Answer

So here we need to determine the normal stress acting on each bar, shearing and bearing stress a

Adi S · Answer

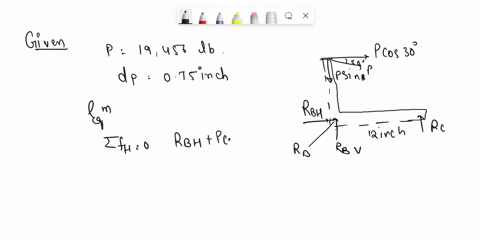

Here in this question first we can write down a given data the load is given that is equal to 19

Monisha Shukla · Answer

Hello, in this question we have to find the what is the maximum load P can be applied to the sys

Khoobchandra Agrawal · Answer

Hi friends, in the given figure we have to find maximum force given normal stress pressure to 20

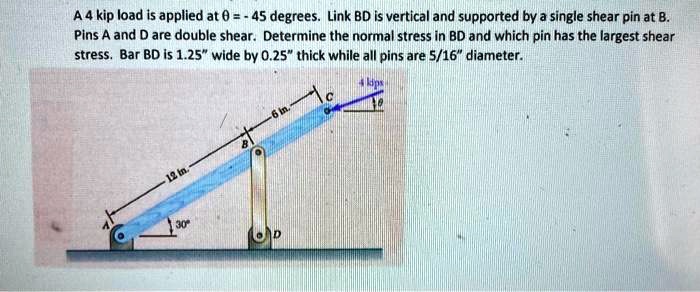

A 4 kip load is applied at $\theta$ = 45 degrees. Link BD is vertical and supported by a single shear pin at B. Pins A and D are double shear. Determine the normal stress in BD and which pin has the largest shear stress. Bar BD is 1.25" wide by 0.25" thick while all pins are 5/16" diameter.
