A 400 V, 3-phase, 50 Hz star-connected squirrel cage induction motor gave the following test results: No-load Test: 400V, 7.5A, 0.135 pf Blocked-rotor Test: 150 V, 35 A, 0.44 pf The ratio of standstill leakage reactance of stator and rotor is estimated as 2. If the motor is running at a speed of 960 rpm. Determine net mechanical power output, the net torque and efficiency. Assume stator and rotor copper losses to be equal.
Added by Wendy H.
Close
Step 1
### Show more…
Show all steps
Your feedback will help us improve your experience
Lien Le and 81 other Physics 103 educators are ready to help you.
Ask a new question
Labs
Want to see this concept in action?
Explore this concept interactively to see how it behaves as you change inputs.
Key Concepts
Recommended Videos

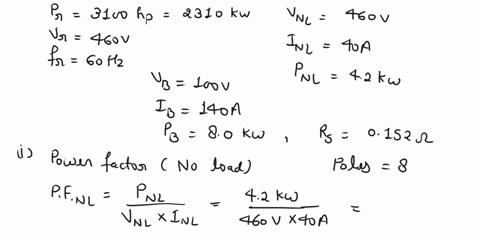

The following test results are obtained from a 3ϕ, 100 hp, 460 V, eight-pole, star-connected squirrel-cage induction machine. No-load test: 460 V, 60 Hz, 40 A, 4.2 kW Blocked-rotor test: 100 V, 60 Hz, 140 A, 8.0 kW Average dc resistance between two stator terminals is 0.152 Ω. (a) Determine the parameters of the equivalent circuit. (b) The motor is connected to a 3ϕ, 460 V, 60 Hz supply and runs at 873 rpm. Determine the input current, input power, air gap power, rotor copper loss, mechanical power developed, output power, and efficiency of the motor.
Adi S.
A large 3-phase, 400 V, 60 Hz squirrel-cage induction motor draws a current of 385 A and a total active power of 2344 kW when operating at full-load. The corresponding speed is accurately measured to be 709.2 rpm. The stator is connected in wye and the resistance between two stator terminals is 0.10 Ω. The total iron losses are 23.4 kW and the windage and friction losses are 12 kW. Calculate the active power supplied to the rotor. (3 marks) Choose an appropriate motor's slip and compute the total copper losses in the rotor. (3 marks) Based on the chosen motor's slip in Q4(b)(ii), determine the total mechanical power, output torque, and efficiency of the motor if the rotor speed is 705.6 rpm. (4 marks)
Madhur L.

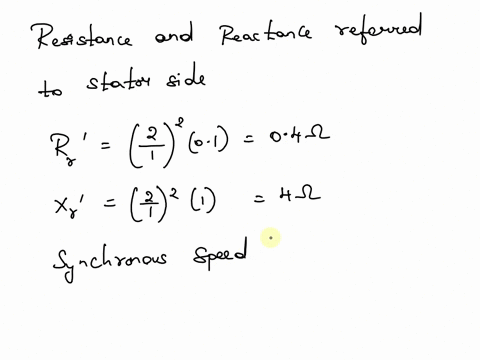

A 3 phase, 400 V, 50 Hz, four-pole induction motor has star connected stator winding, the rotor resistance and reactance are 0.1 ohms and 1 ohm, respectively. The full load speed is 1440 r.p.m. Calculate the torque developed on full load by the motor. Assume stator to rotor ratio as 2: 1.
