A 45mm steel shaft rotates at 120 rpm and transmits 12K W power. It is keys to a 210mm steel pulley. Determine the size of a square key required if the key material has an allowable stress of 2.63GN/m°.
Added by Olomide O.
Your feedback will help us improve your experience
Khoobchandra Agrawal and 89 other Physics 101 Mechanics educators are ready to help you.
Ask a new question
Labs
Want to see this concept in action?
Explore this concept interactively to see how it behaves as you change inputs.
Key Concepts
Recommended Videos
The lever is attached to the shaft $A$ using a key that has a width $d$ and length of $25 \mathrm{mm}$. If the shaft is fixed and a vertical force of $200 \mathrm{N}$ is applied perpendicular to the handle, determine the dimension $d$ if the allowable shear stress for the key is $\tau_{\text {allow }}=35 \mathrm{MPa}$
The A-36 hollow steel shaft is 2 $\mathrm{m}$ long and has an outer diameter of $40 \mathrm{mm} .$ When it is rotating at $80 \mathrm{rad} / \mathrm{s}$, it transmits $32 \mathrm{kW}$ of power from the engine $E$ to the generator $G .$ Determine the smallest thickness of the shaft if the allowable shear stress is $\tau_{\text {allow }}=140 \mathrm{MPa}$ and the shaft is restricted not to twist more than 0.05 rad.

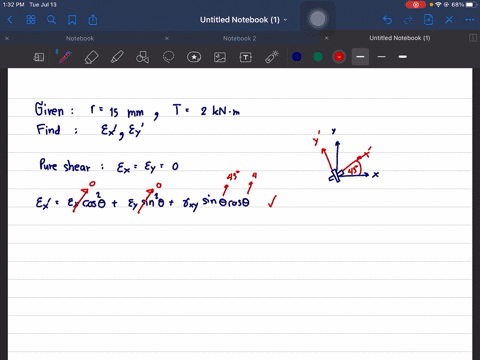

The shaft has a radius of $15 \mathrm{mm}$ and is made of L2 tool steel. Determine the strains in the $x^{\prime}$ and $y^{\prime}$ direction if a torque $T=2 \mathrm{kN} \cdot \mathrm{m}$ is applied to the shaft.
