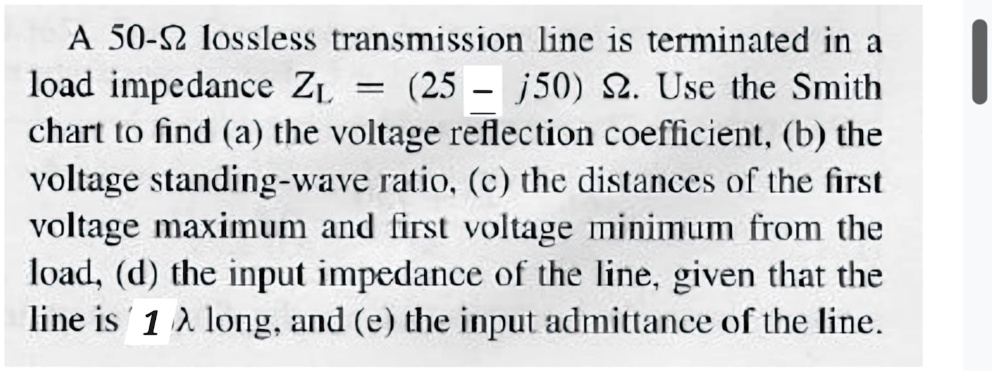

A 50-Omega lossless transmission line is terminated in a
load impedance Z_(L)=(25-j50)Omega . Use the Smith
chart to find (a) the voltage reflection coefficient, (b) the
voltage standing-wave ratio, (c) the distances of the first
voltage maximum and first voltage minimum from the
load, (d) the input impedance of the line, given that the
line is 1lambda long, and (e) the input admittance of the line.
A 50- lossless transmission line is terminated in a load impedance Z= 25-i50) 2.Use the Smith chart to find (a) the voltage refiection coefficient,(b the voltage standing-wave ratio, (c) the distanccs of the first voltage maximum and first voltage minimum from the load, (d) the input impedance of the line, given that the line is1 long, and (e) the input admittance of the line
