(a) A centrifugal pump is required to lift 9100 litres per minute of water against a head of 6 m while running at 500 rpm . The velocity of flow through the wheel is \( 2 \mathrm{~m} / \mathrm{s} \) and the Manometric efficiency is \( 60 \% \) the angle of vane tip with the direction of motion is \( 150^{\circ} \). Determine the diameter and width of impeller. \( [\mathrm{BT}-5, \mathrm{CO}-4, \mathrm{PO}-3] \)
Added by Stephen D.
Close
Step 1
Here's a step-by-step approach: ### Show more…
Show all steps
Your feedback will help us improve your experience
Adi S and 67 other Microeconomics educators are ready to help you.
Ask a new question
Labs
Want to see this concept in action?
Explore this concept interactively to see how it behaves as you change inputs.
Key Concepts
Recommended Videos
Adi S.
Narayan H.

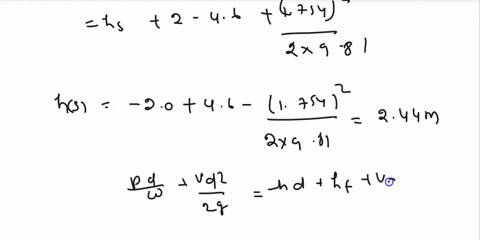

Example 19.21. The impeller of a centrifugal pump has an outer diameter of 250 mm and an effective area of 0.017 m². The blades are bent backwards so that the direction of outlet relative velocity makes an angle of 148° with the tangent drawn in the direction of impeller rotation. The diameters of suction and delivery pipes are 150 mm and 100 mm respectively. The pump delivers 0.031 m³/s at 1450 r.p.m. when the gauge points on the suction and delivery pipes close to the pumps show heads of 4.6 m below and 18.0 m above atmosphere respectively. The head losses in the suction and delivery pipes are 2.0 m and 2.9 m respectively. The motor driving the pump delivers 8.67 kW. Assuming that water enters the pump without shock and whirl, determine: (i) The manometric efficiency, and (ii) The overall efficiency of the pump. [UPSC Exams.]
