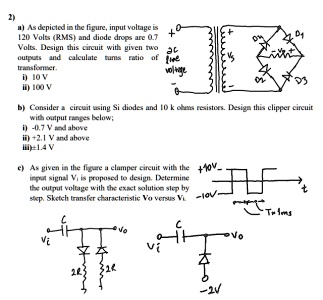

2) a) As depicted in the figure, input voltage is 120 Volts (RMS) and diode drops are 0.7 Volts. Design this circuit with given two outputs and calculate turns ratio of transformer. i) 10 V ii) 100 V b) Consider a circuit using Si diodes and 10 k ohms resistors. Design this clipper circuit with output ranges below; i) -0.7 V and above ii) +2.1 V and above iii) ±1.4 V c) As given in the figure a clamper circuit with the input signal Vi is proposed to design. Determine the output voltage with the exact solution step by step. Sketch transfer characteristic Vo versus Vi.

          2)
a) As depicted in the figure, input voltage is
120 Volts (RMS) and diode drops are 0.7
Volts. Design this circuit with given two
outputs and calculate turns ratio of
transformer.
i) 10 V
ii) 100 V

b) Consider a circuit using Si diodes and 10 k ohms resistors. Design this clipper circuit
with output ranges below;
i) -0.7 V and above
ii) +2.1 V and above
iii) ±1.4 V

c) As given in the figure a clamper circuit with the
input signal Vi is proposed to design. Determine
the output voltage with the exact solution step by
step. Sketch transfer characteristic Vo versus Vi.

2)
a) As depicted in the figure, input voltage is
120 Volts (RMS) and diode drops are 0.7
Volts. Design this circuit with given two
outputs and calculate turns ratio of
transformer.
i) 10 V
ii) 100 V

b) Consider a circuit using Si diodes and 10 k ohms resistors. Design this clipper circuit
with output ranges below;
i) -0.7 V and above
ii) +2.1 V and above
iii) ±1.4 V

c) As given in the figure a clamper circuit with the
input signal Vi is proposed to design. Determine
the output voltage with the exact solution step by
step. Sketch transfer characteristic Vo versus Vi.
