a) Assume that the cohesion is 10 MPa, and the angle of internal friction is 30°. Given Mohr Coulomb behavior what is the normal stress and shear stress of a plane of failure if the mean stress is 40 MPa? b) What is the differential stress for this stress state?
Added by Tracy M.
Close
Step 1
cohesion = 10 MPa angle of internal friction = 30" mean stress = 40 MPa Show more…
Show all steps
Your feedback will help us improve your experience
Sri K and 93 other Physics 101 Mechanics educators are ready to help you.
Ask a new question
Labs
Want to see this concept in action?
Explore this concept interactively to see how it behaves as you change inputs.
Key Concepts
Recommended Videos
At a point in a stressed body, the cartesian components of stress are Oxx = 60 MPa, Guy = -40 MPa, Ozz = 20 MPa, Txy = -40 MPa, Tyz = 20 MPa, and Txz = 30 MPa. Determine: (a) The principle stresses and their direction cosines. (b) The normal and shear stresses on a plane whose outer normal has the following direction cosines: cos (n,x) = 0.429; cos (n, y) = 0.514; cos (n, z) = 0.743
Madhur L.
Given the state of stress below, solve for the following: a) Principal Stresses b) Max in-plane shear stress c) Draw the Mohr's circle and indicate the current state of stress for this problem. Label points from a & b above on the circle
Sri K.

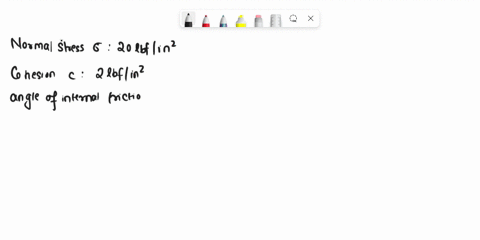

Calculate the shear stress when a normal stress of 20 lb/in^2 is applied to a material with cohesion of 2 lb/in^2 and an angle of internal friction of 35 degrees. The Mohr-Coulomb Failure Criterion represents the linear envelope that is obtained from a plot of the shear stress of a material versus the applied normal stress. More generally, the Mohr-Coulomb theory is a mathematical model that describes the response of brittle materials, like concrete or rubble piles, to shear stress as well as normal stress. Most of the classical engineering materials somehow follow this rule in at least a portion of their shear failure envelope. The Mohr-Coulomb criterion is represented by τ = σ tan(θ) + c where τ is the shear stress (units of lb/in^2), σ is the normal stress (units of lb/in^2), θ is the angle of internal friction (units of degrees), and c is the cohesion (units of lb/in^2).
