Question

A B C D E F G $$\Delta V_b$$ Consider the bulb circuit above. Now unscrew bulb B. For each remaining bulb, indicate what happens to the bulb. Fill in the blanks with: brighter, dimmer, no change, or goes out. Bulb A [Choose] Bulb C [Choose] Bulb D [Choose] Bulb E [Choose] Bulb F [Choose] Bulb G [Choose]

Name: a b c d e f g delta vb consider the bulb circuit above now unscrew bulb b for each remaining bulb indicate what happens to the bulb fill in the blanks with brighter dimmer no change or goes 59676
Uploaded: 2022-06-18T05:47:50-08:00
Duration: 5 min 21 s
Channel: Sri K
Description: a b c d e f g delta vb consider the bulb circuit above now unscrew bulb b for each remaining bulb indicate what happens to the bulb fill in the blanks with brighter dimmer no change or goes 59676

          A
B
C
D
E
F
G
$$\Delta V_b$$

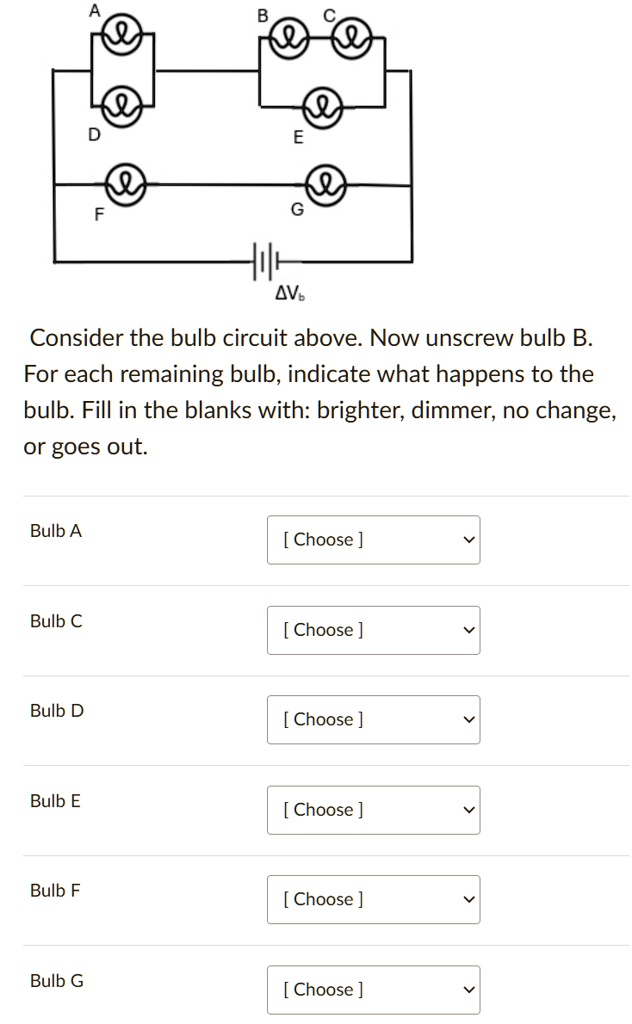

Consider the bulb circuit above. Now unscrew bulb B.
For each remaining bulb, indicate what happens to the
bulb. Fill in the blanks with: brighter, dimmer, no change,
or goes out.
Bulb A
[Choose]
Bulb C
[Choose]
Bulb D
[Choose]
Bulb E
[Choose]
Bulb F
[Choose]
Bulb G
[Choose]

a b c d e f g delta vb consider the bulb circuit above now unscrew bulb b for each remaining bulb indicate what happens to the bulb fill in the blanks with brighter dimmer no change or goes 59676

Added by Jessica C.

University Physics with Modern Physics

Hugh D. Young 14th Edition

Instant Answer

Solved by Expert Sri K

06/18/2022

Step 1

The circuit consists of a voltage source $$\Delta V_b$$ and seven bulbs (A, B, C, D, E, F, G). Bulbs A and D are in parallel. This parallel combination is in series with the parallel combination of bulbs B, C, and E. Bulbs B and C are in parallel, and this Show more…
