RPM of Faster...

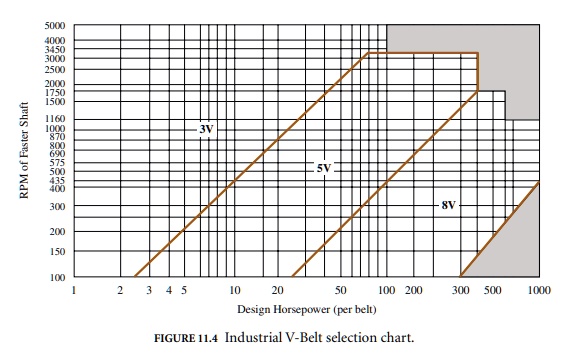

RPM of Faster Shaft 5000 4000 3450 3000 2500 2000 1750 1500 1160 1000 870 3V 800 690 575 500 435 400 300 200 150 100 1 2 3 4 5 10 20 5V 50 8V 100 200 300 500 1000 Design Horsepower (per belt) FIGURE 11.4 Industrial V-Belt selection chart.

Thanks for your feedback!

A belt drive is desired to couple the motor with a mixer for processing corn syrup. The 10-hp electric motor is rated at 3550 rpm, and the mixer must operate as close to 900 rpm as possible. Select an appropriate belt size, commercially available sheaves, and a belt for this application. Also, calculate the actual belt speed and the center distance. Assume: - An industrial V-Belt - Single belt - Compact Design - Smallest drive sheave so that driven speed is 900 rpm +/- 5% - Aim for the shaft spacing that is an even whole number 1.) The nomenclature of the properly selected V-Belt is _____ V. 2.) The magnitude of the "ideal" VR for the belt drive is _____. 3.) Consider the speed range (bandwidth) that the mixer shall be allowed to operate. The magnitude of the larger speed is _____ rpm. 4.) Consider the speed range (bandwidth) that the mixer shall be allowed to operate. The magnitude of the smaller speed is _____ rpm.

Play audio

Feedback

Question

RPM of Faster Shaft 5000 4000 3450 3000 2500 2000 1750 1500 1160 1000 870 3V 800 690 575 500 435 400 300 200 150 100 1 2 3 4 5 10 20 5V 50 8V 100 200 300 500 1000 Design Horsepower (per belt) FIGURE 11.4 Industrial V-Belt selection chart.
