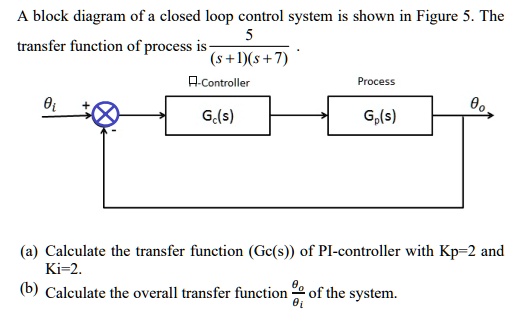

A block diagram of a closed loop control system is shown in Figure 5. The transfer function of p

Question

Adi S · Answer

So, the solution is we have given a circuit. So, this is our circuit there is Kc and this is G1

Sri K · Answer

Solution of this question is, this is diagram of the question. This is KP plus KI divided by S.

Sri K · Answer

here let&#x27;s look at the solution for a we know that c divided by b that is equals to g2 that divi

Sri K · Answer

this question were given here. So, in the question 1 we are given as the closed loop so we are g

Adi S · Answer

So, in order to find the ys by ds we need to put, we put, what we are going to put that is ysb i
