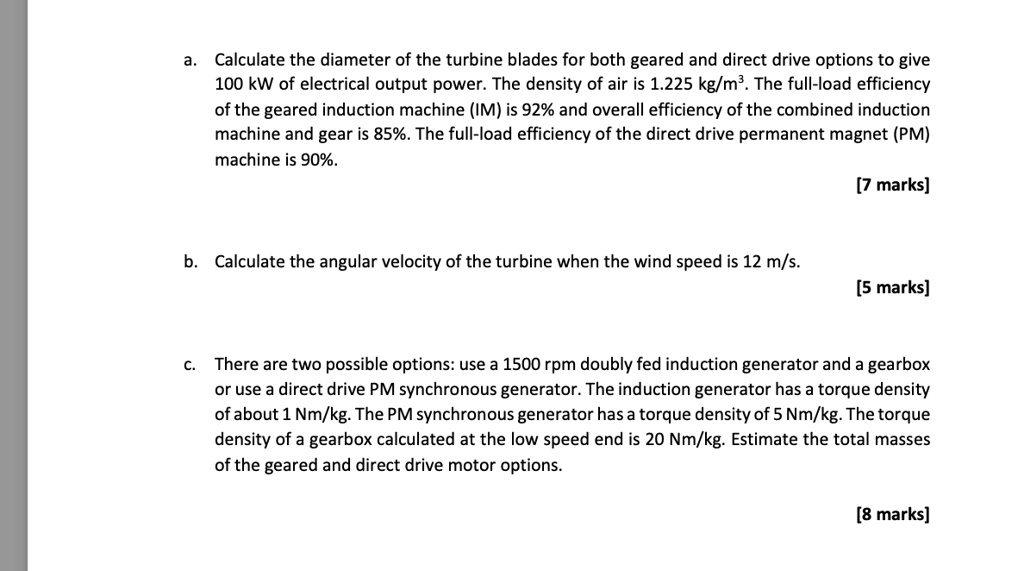

a. Calculate the diameter of the turbine blades for both geared and direct drive options to give 100 kW of electrical output power. The density of air is 1.225 kg/m³. The full-load efficiency of the geared induction machine (IM) is 92% and overall efficiency of the combined induction machine and gear is 85%. The full-load efficiency of the direct drive permanent magnet (PM) machine is 90%. b. Calculate the angular velocity of the turbine when the wind speed is 12 m/s. c. There are two possible options: use a 1500 rpm doubly fed induction generator and a gearbox or use a direct drive PM synchronous generator. The induction generator has a torque density of about 1 Nm/kg. The PM synchronous generator has a torque density of 5 Nm/kg. The torque density of a gearbox calculated at the low speed end is 20 Nm/kg. Estimate the total masses of the geared and direct drive motor options.
Added by Kimberly M.
Close
Step 1
Calculate the diameter of the turbine blades for both geared and direct drive options to give 100 kW of electrical output power. ** Show more…
Show all steps
Your feedback will help us improve your experience
Umar Sohail Qureshi and 92 other Physics 101 Mechanics educators are ready to help you.
Ask a new question
Labs
Want to see this concept in action?
Explore this concept interactively to see how it behaves as you change inputs.
Key Concepts
Recommended Videos
A generator driven by a wind turbine is required to deliver 12 MW of power at the generator terminal. The turbine is a two-blade propeller rotating about a horizontal axis, and the maximum permitted shear stress of the turbine shaft is 55x10^8 N/m^2. The rotor is designed to operate at a rotational speed of 70 revolutions per second. The stage efficiencies are Cp = 0.32, ngb = 90, and ng = 92. If the turbine delivers its rated power with an average wind speed of 20 m/s, calculate the corresponding diameter of the propeller and its TSR (Tip Speed Ratio) assuming a typical value for the overall efficiency. The air density may be assumed to have a value of 1.29 kg/m^3. (i) Calculate the torque on the turbine shaft, area, radius, and tip speed ratio.
Penny R.
The following data were recorded for a two-blade HAWT: Average free wind speed at a standard height of 8 m = 8 m/s, air density = 0.226 kg/m³, hub height from the ground = 80 m, rotor diameter = 60 m. Downstream wind velocity is half that of upstream wind. Find the power available in the wind, power extracted by the turbine, axial force on the turbine (a) when maximum power is extracted, and (b) when no power is extracted and the blade stalls completely. Ans: 1.995 MW, 1.1219 MW, 1.429 x 10 N, 1.693 x 10 N, zero. 2. A HAWT has the following data: Speed of wind = 10 m/s at 1 atm and 15°C, diameter of rotor = 120 m, speed of rotor = 40 rpm. Calculate the maximum possible torque produced at the shaft. Ans: 6.0 x 10^5 Nm. 3. A two-blade HAWT is installed at a location with a free wind velocity of 0 m/s. The rotor diameter is 30 m. What rotational speed should be maintained to produce maximum output? Ans: 80 rpm.
