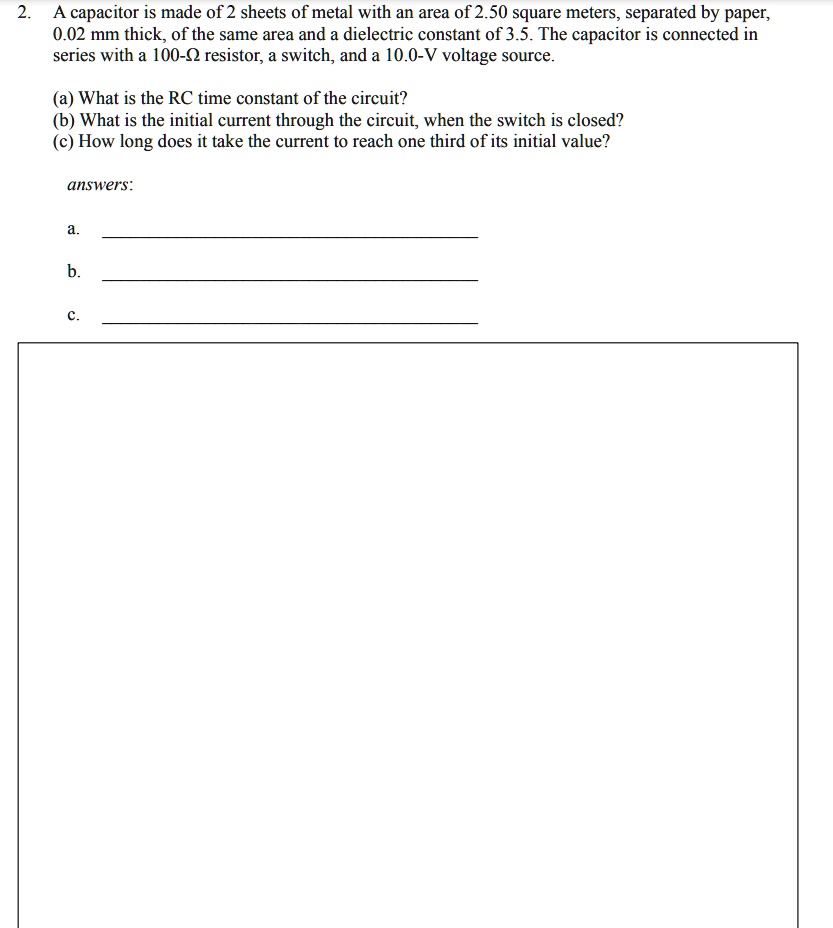

2. A capacitor is made of 2 sheets of metal with an area of 2.50 square meters, separated by paper, 0.02 mm thick, of the same area and a dielectric constant of 3.5. The capacitor is connected in series with a 100-? resistor, a switch, and a 10.0-V voltage source. (a) What is the RC time constant of the circuit? (b) What is the initial current through the circuit, when the switch is closed? (c) How long does it take the current to reach one third of its initial value? answers: a. b. c.
Added by Andrea F.
Close
Step 1
Step 1: Calculate the RC time constant of the circuit. Show more…
Show all steps
Your feedback will help us improve your experience
Khoobchandra Agrawal and 61 other Physics 101 Mechanics educators are ready to help you.
Ask a new question
Labs
Want to see this concept in action?
Explore this concept interactively to see how it behaves as you change inputs.
Key Concepts
Recommended Videos
A capacitor of capacitance C = 4.5 µF is initially uncharged. It is connected in series with a switch of negligible resistance, a resistor of resistance R = 7.5 kΩ, and a battery which provides a potential difference of VB = 165 V. Calculate the time constant τ for the circuit in seconds. After a very long time after the switch has been closed, what is the voltage drop VC across the capacitor in terms of VB? Calculate the charge Q on the capacitor a very long time after the switch has been closed in C. Calculate the current I a very long time after the switch has been closed in A. Calculate the time t after which the current through the resistor is one-third of its maximum value in s. Calculate the charge Q on the capacitor when the current in the resistor equals one third its maximum value in C.
Adi S.

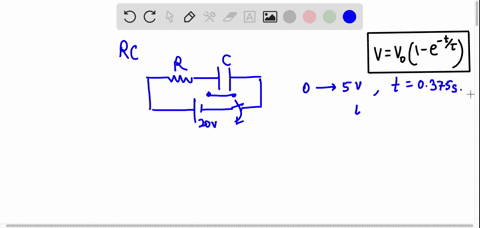

3. An RC circuit is connected to a 20.0 volt EMF source. After the switch is closed, it takes 0.375 seconds for the voltage of the capacitor to increase from zero up to 5.00 volts. Calculate the time constant of this circuit.
Pritesh R.
Problem 3: A capacitor of capacitance C = 2 μF has been charged so that the potential difference between its plates is V0 = 85 V. The capacitor is then connected to a resistor of resistance R = 5.5 kΩ. The switch S is closed, and the capacitor begins to discharge. C = 2 μF V0 = 85 V R = 5.5 kΩ Calculate the time constant τ of the circuit in seconds. Calculate the charge Q0 on the capacitor before the switch is closed, in coulombs. Calculate the current I0 immediately after the switch is closed, in amperes. Calculate the potential difference VC in volts between the capacitor plates at time t = 5.0 ms after the switch is closed. Calculate the time T in s after which the charge on the capacitor has decreased to one fourth its maximum value.
Vaidik S.
