A certain buckling phenomenon can be modeled as y" = F Ely+ El' where F, E, l and M are positive constants. Solve the differential equation with conditions y (0) = 0, y' (0) = 0. Assume the independent variable to be x y =
Added by Melvin C.
Step 1
To solve the differential equation \( y'' = F E l y + E l' \) with the initial conditions \( y(0) = 0 \) and \( y'(0) = 0 \), we will follow these steps: Show more…
Show all steps
Your feedback will help us improve your experience
Chai Santi and 70 other Physics 101 Mechanics educators are ready to help you.
Ask a new question
Labs
Want to see this concept in action?
Explore this concept interactively to see how it behaves as you change inputs.
Key Concepts
Recommended Videos

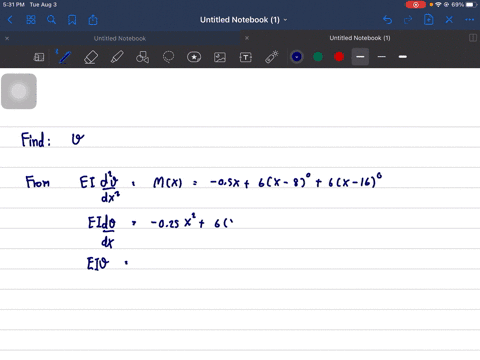

Determine the equation of the elastic curve. $E I$ is constant.

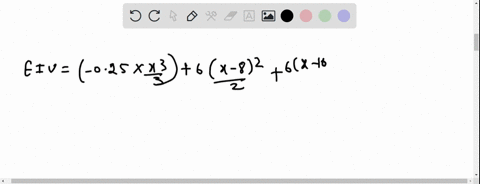

Determine the equation of the elastic curve. EI is constant.
We use the equation given above and use the result that when $y$ is small $$ \frac{1}{R} \sim \frac{d^{2} y}{d x^{2}} . \text { Thus, } \frac{d^{2} y}{d x^{2}}=\frac{N(x)}{E I} $$ (a) Here $N(x)=N_{0}$ is a constant. Then integration gives, $$ \frac{d y}{d x}=\frac{N_{0} x}{E I}+C_{1} $$ But $\quad\left(\frac{d y}{d x}\right)=0$ for $x=0$, so $C_{1}=0$. Integrating again, $$ y=\frac{N_{0} x^{2}}{2 E I} $$ where we have used $y=0$ for $x=0$ to set the constant of integration at zero. This is the equation of a parabola. The sag of the free end is $$ \lambda=y(x=l)=\frac{N_{0} l^{2}}{2 E I} $$ (b) In this case $N(x)=F(l-x)$ because the load $F$ at the extremity is balanced by a similar force at $F$ directed upward and they constitute a couple. Then $$ \frac{d^{2} y}{d x^{2}}=\frac{F(l-x)}{E I} $$ Integrating, $\frac{d y}{d x}=\frac{F\left(L x-x^{2} / 2\right)}{E I}+C_{1}$ As before $C_{1}=0 .$ Integrating again, using $y=0$ for $x=0$ $$ y=\frac{F\left(\frac{b^{2}}{2}-\frac{x^{3}}{6}\right)}{E I} \text { here } \lambda=\frac{F l^{3}}{3 E I} $$ Here for a square cross section $$ I=\int_{-a / 2}^{a / 2} z^{2} a d z=a^{4} / 12 $$
Physical Fundamentals Of Mdchanics
Elastic Deformations of a Solid Body
Recommended Textbooks
University Physics with Modern Physics
Physics: Principles with Applications
Fundamentals of Physics
