A circuit consists of three unequal capacitors c1 c2 and c3...

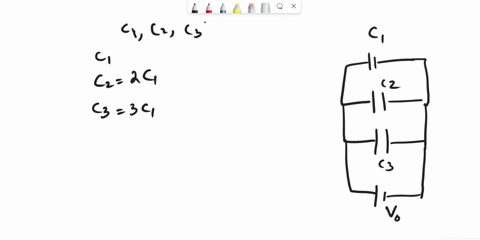

a circuit consists of three unequal capacitors C1 C2 and C3 that are connected to a battery of voltage V0 the capacitance of C2 is twice that of C1 the capacitance of C3 is three times that of C1 when fully charged, C1 C2 C3 hold charges Q1 Q2 and Q3 respectively compare Q1 Q2 Q3

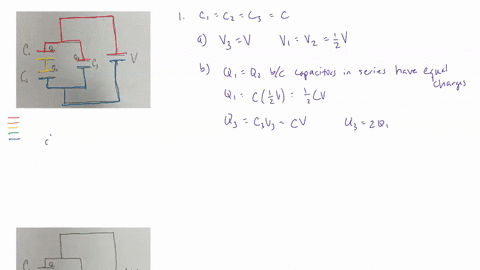

1) Three capacitors, C1, C2, and C3, are arranged as above, connected to a battery V, and charged fully. If you assume that the capacitance of the three capacitors are identical (C1 = C2 = C3), a. What voltages are applied across the capacitors 1, 2, and 3? b. What relative charges are stored on the three capacitors? (In other words, what is the relationship between Q1 and Q2? Between Q1 and Q3?) c. Find the equivalent capacitance Ceq, of the three-capacitor system. 2) Consider the same diagram above, except assume that C1 = 2C2 and C1=C3. a. What voltages are applied across capacitors 1, 2, and 3? b. What relative charges are stored on the three capacitors? (In other words, what is the relationship between Q1 and Q2? Between Q1 and Q3?) c. Find the equivalent capacitance Ceq, of the three-capacitor system.

Brandy H.

Question

a circuit consists of three unequal capacitors C1 C2 and C3 that are connected to a battery of voltage V0 the capacitance of C2 is twice that of C1 the capacitance of C3 is three times that of C1 when fully charged, C1 C2 C3 hold charges Q1 Q2 and Q3 respectively compare Q1 Q2 Q3

Please give Ace some feedback
