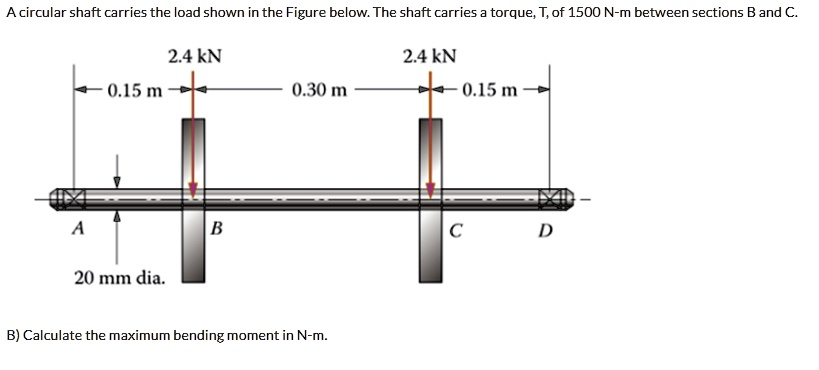

A circular shaft carries the load shown in the Figure below. The shaft carries a torque, T, of 1500 N-m between sections B and C. 2.4 kN 2.4 kN 0.15 m 0.30 m 0.15 m A 20 mm dia. B B) Calculate the maximum bending moment in N-m. C D
Added by Larry D.
Close
Step 1
The shaft is supported at points A and D. There are two downward forces of 2.4 kN (2400 N) at points B and C. The distance from A to B is 0.15 m. The distance from B to C is 0.30 m. The distance from C to D is 0.15 m. The total length of the shaft is $0.15 + 0.30 Show more…
Show all steps
Your feedback will help us improve your experience
Adi S and 86 other Physics 101 Mechanics educators are ready to help you.
Ask a new question
Labs
Want to see this concept in action?
Explore this concept interactively to see how it behaves as you change inputs.
Key Concepts
Recommended Videos
Adi S.
1. The rotating solid steel shaft is simply supported by bearings at points B and C and is driven by a gear ( not shown) which meshes with the spur gear at D, which has a 150-mm pitch diameter. The force F from the driver gear acts at a pressure angle of 20 degree. The shaft transmits a torque to point A of TA =340 N.m. The shaft is machined from steel with d=0.043m, Sy=420 MPa Sut=560 MPa , Kf=2.4, and Kfs=2.1. The maximum bending moment Ma will be at point C. Consider Mm and Ta are zero. Calculate F, Ma, Tm, von Mises maximum stress and Ny (safety factor).
