A coaxial conductor has an inner radius $a = 1.0 \text{ mm}$ and an outer radius $b = 5 \text{ mm}$. The dielectric between the two conductors is silicon. The polarization field $P$ within the dielectric is given by $P = \frac{2}{\rho^2} a \rho \frac{nC}{m^2}$ (a) Find $D$ and $E$ as functions of $\rho$. (b) Find $V_{ab}$.
Added by Kathleen O.
Close
Step 1
In a linear dielectric material, this relationship is given by D = ε0E + P, where ε0 is the permittivity of free space and E is the electric field. Since the dielectric is silicon, we can use the permittivity of silicon (εr = 11.7) to find ε0 = εrε0, where ε0 is Show more…
Show all steps
Your feedback will help us improve your experience
Rajesh Kumar and 96 other Physics 102 Electricity and Magnetism educators are ready to help you.
Ask a new question
Labs
Want to see this concept in action?
Explore this concept interactively to see how it behaves as you change inputs.
Key Concepts
Recommended Videos

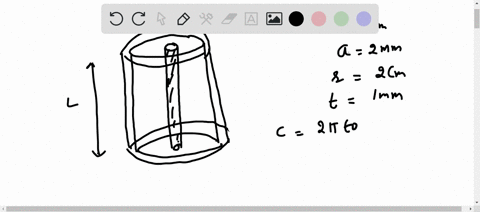

A 100 m long coaxial cable has a central conductor of radius 2 mm, the outer conductor or shield has radius b=2 cm and a thickness of 1 mm. The dielectric material has a relative permittivity of 3 and a dielectric strength of 150 kV/mm. Calculate the resistance of the internal conductor and the external screen, the resistance per each meter, the total capacitance and the capacitance per unit length of the coaxial cable.
Khoobchandra A.
A 50 m length of coaxial cable has a solid cylindrical wire inner conductor with a diameter of 1.51 mm and carries a charge of 5.98 µC. The surrounding conductor is a cylindrical shell and has an inner diameter of 10.074 mm and a charge of -5.98 µC. What is the capacitance of this cable? Assume the region between the conductors is air. The value of the Coulomb constant is 8.98755 × 10^9 N · m^2 /C^2. Answer in units of nF.
Narayan H.

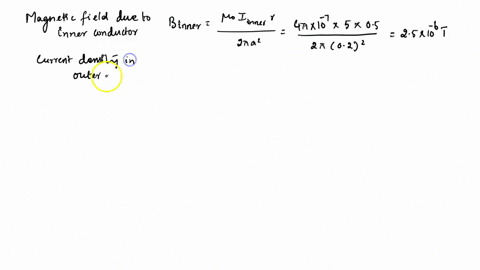

A coaxial cable consists of a solid inner conductor of radius a = 0.2 m carrying total current of 5A, surrounded by a concentric cylindrical tube of inner radius b=0.4 m and outer radius c=0.6m carrying current of 5A. The conductors carry equal and opposite currents I distributed uniformly across their cross-sections. Determine the magnetic field at a distance r=0.5m from the axis.
Adi S.
