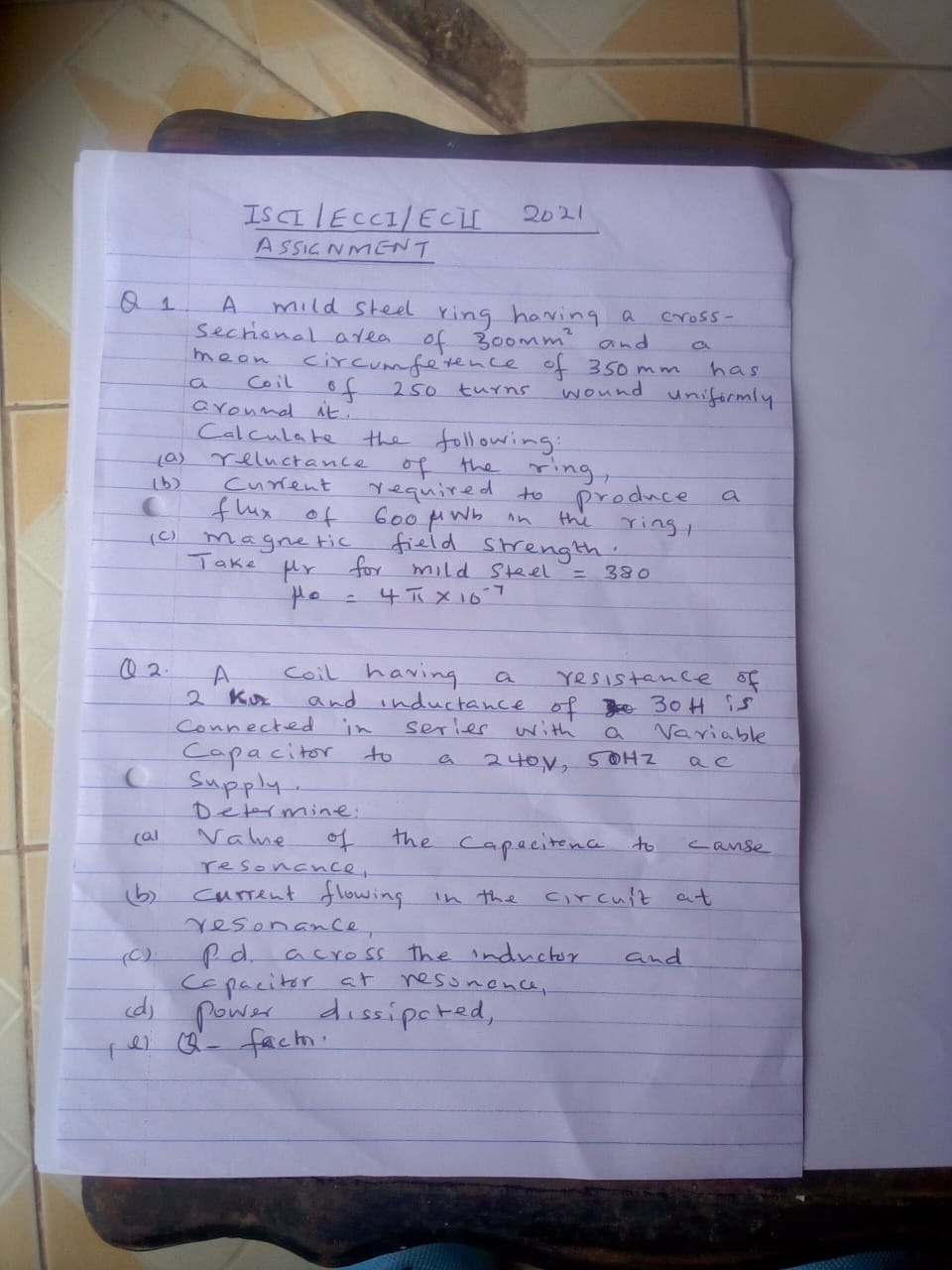

ISCI | ECCI / ECII 2021 ASSIGNMENT Q 1. A mild steel ring having a cross-sectional area of 300mm² and a mean circumference of 350 mm has a coil of 250 turns wound uniformly around it. Calculate the following: (a) reluctance of the ring, (b) current required to produce a flux of 600 ?Wb in the ring, (c) magnetic field strength. Take ?r for mild steel = 380 ?o = 4? x 10?? Q 2. A coil having a resistance of 2 k? and inductance of 30 H is connected in series with a variable capacitor to a 240V, 50Hz ac supply. Determine: (a) value of the capacitance to cause resonance, (b) current flowing in the circuit at resonance, (c) p.d. across the inductor and capacitor at resonance, (d) power dissipated, (e) Q-factor.
Added by Calvin K.
Close
Step 1
Step 1: Calculate the resonant frequency using the formula \( \omega_0 = \frac{1}{\sqrt{L \cdot C}} \), where \( L = 30H \) and \( C \) is the variable capacitance. Show more…
Show all steps
Your feedback will help us improve your experience
Frank Deng and 100 other Physics 102 Electricity and Magnetism educators are ready to help you.
Ask a new question
Labs
Want to see this concept in action?
Explore this concept interactively to see how it behaves as you change inputs.
Key Concepts
Recommended Videos
Adi S.

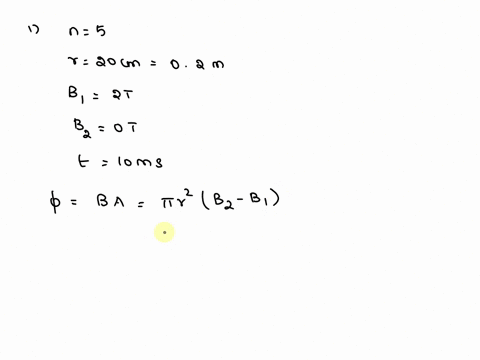

A uniform flux density of 2T is perpendicular to the plane of a five-turn coil of radius 20cm. Determine the total flux of the five-turn coil. Assume that the field is reduced to 0 at a uniform rate in 10ms. What is the magnitude of the voltage induced voltage in the coil? 5) As shown in the solenoid, the current i2 in the outer coil is given by . (a) At , what is the average magnetic flux through each turn of the solenoid (coil 1) due to the current in the outer coil? (b) What is the induced emf in the solenoid? (Given M = 25 μH; N1 = 1000; N2 = 10) 6) A 220-Ω resistor, a 0.875-H inductor, and a 7.00-μF capacitor are connected in series across a voltage source that has voltage amplitude 30.5 V and an angular frequency of 260 rad/s. (a) What are v R, v L, and v C at t = 20.5 ms? (b) What are VR, VL and VC? 7) In the L-R-C series circuit in the Fig, suppose R = 300 Ω, L = 60 mH C = 0.50 μF, V = 50 V, and ω = 10,000 rad/s. Find the reactances XL and XC, the impedance Z, the current amplitude I, and the voltage amplitude across each circuit element.
Supreeta N.
If an 80 mH inductor is in series with a 220 Ω resistor in a circuit with a source frequency of 1000 Hz, what will be the phase angle (rounded) of the current with respect to the voltage? A. 48° B. 66° C. 50° D. 70° A 10 mH inductor and a 100 Ω resistor are connected in parallel. The circuit is supplied with 24 VAC at 2000 Hz. What is the total circuit current (rounded)? A. 0.29 A B. 0.31 A C. 0.42 A D. 0.46 A What is the time constant of a 0.1 microfarad capacitor and a 10,000 ohm resistor that are connected in series? A. 0.01 second B. 1,000 microseconds C. 10 milliseconds D. 1 second Which of the following materials would not be used as a dielectric material in a capacitor? A. Aluminum foil B. Tantalum C. Polystyrene D. Paper What is the capacitive reactance of a 0.006 microfarad capacitor in an AC circuit that has a frequency of 2,000 Hz? A. 8,236 ohms B. 6,154 ohms C. 12,380 ohms D. 13,270 ohms
Sri K.
