A concave mirror Object F Image 12) The above diagram shows image formation by a concave mirror. Is the diagram correct? A) Yes B) No
Added by Luke M.
Close
Step 1
Step 1: The question asks if the diagram showing image formation by a concave mirror is correct. Show more…
Show all steps
Your feedback will help us improve your experience
Sri K and 86 other Physics 101 Mechanics educators are ready to help you.
Ask a new question
Labs
Want to see this concept in action?
Explore this concept interactively to see how it behaves as you change inputs.
Key Concepts
Recommended Videos
Which of the following statements apply to the image created when an object is placed at point B in the diagram below? Select as many options as you deem correct. Note: Selecting an incorrect option may incur a penalty of -10% to -20% of the marks for each question, so be careful with the options you select. concave mirror F B a. The image distance is shorter than the object distance b. The image is real c. The image distance is the same as the object distance d. The image is larger than the object e. The image is virtual f. The image is smaller than the object g. The image is upright
Sri K.

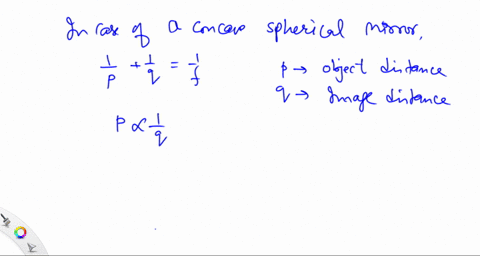

An object is initially placed at a distance of 2$f$ from the focal point of a concave mirror, as shown in the diagram above. If the object is moved away from the mirror, how is the image affected? (A) The image size remains constant but moves away from the mirror. (B) The image increases in size and moves away from the mirror. (C) The imge increases in size and moves tward the mirror. (D) The image decreases in size and moves away from the mirror. (E) The image decreases in size and moves toward the mirror.
A student draws the following incorrect ray diagram for a concave mirror; in particular, the image is in the wrong location. (a) Identify the fundamental thing wrong with this diagram. The answer is NOT that the image is in the wrong location (you're already told that); what about the way the diagram is drawn leads to the incorrect image location? (b) Draw the correct diagram and identify whether the image is real or virtual. You may use the following diagram to get started.
