Question

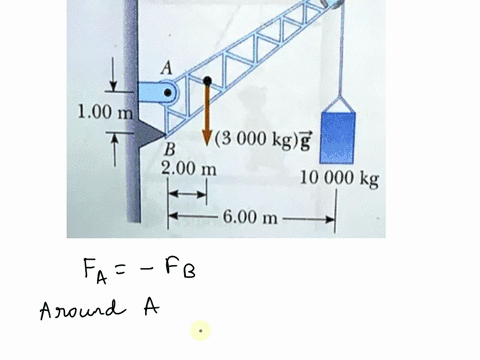

A crane of mass 3000 kg supports a load of $10000 \mathrm{~kg}$ as illustrated in Figure P12.46. The crane is pivoted with a frictionless pin at $A$ and rests against a smooth support at $B$. Find the reaction forces at $A$ and $B$.

          A crane of mass 3000 kg supports a load of $10000 \mathrm{~kg}$ as illustrated in Figure P12.46. The crane is pivoted with a frictionless pin at $A$ and rests against a smooth support at $B$. Find the reaction forces at $A$ and $B$.

Added by Rachel B.

University Physics with Modern Physics

Hugh D. Young 14th Edition

Instant Answer

Solved by Expert Adi S

06/17/2023

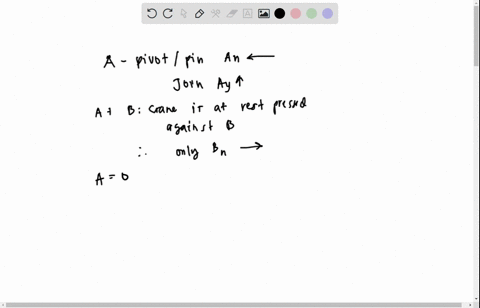

Step 1

First, we need to find the weight of the crane and the load. The weight of the crane is $W_c = m_c g = 3000 \mathrm{~kg} \times 9.81 \mathrm{~m/s^2} = 29430 \mathrm{~N}$. The weight of the load is $W_L = m_L g = 10000 \mathrm{~kg} \times 9.81 \mathrm{~m/s^2} = Show more…
