a) Determine the resultant force of the multi-distributed load. b) Determine the centroid c) Redraw the distributed load with the single load from part a and the centroid from part b. d) Determine the reactions at A and B 6 kN/m 3 kN/m A B 4.5 m 1.5m
Added by Elizabeth G.
Close
Step 1
The load curve consists of two sections: - A triangular load with a magnitude of 6 kN/m and a base of 4 m. The area of a triangle is given by (1/2) * base * height, so the area of this triangular load is (1/2) * 4 m * 6 kN/m = 12 kN. - A rectangular load with a Show more…
Show all steps
Your feedback will help us improve your experience
Ravindra Samadiya and 95 other Physics 101 Mechanics educators are ready to help you.
Ask a new question
Labs
Want to see this concept in action?
Explore this concept interactively to see how it behaves as you change inputs.
Key Concepts
Recommended Videos
Nicholas M.
Calculate the reactions at A and B for the beam subjected to the two linearly varying distribution loads, shown in Fig (2).
Adi S.

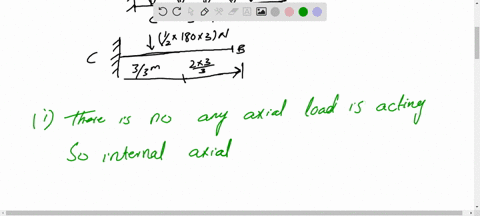

C is located 3 m from the right end. Determine the load density at point C. Determine the internal forces and bending moment at C. N = V = Mc = Determine the resultant internal loadings acting on the cross section at C of the cantilevered beam shown in Fig. 1-4a. 270 N/m B 3 m 6 m
