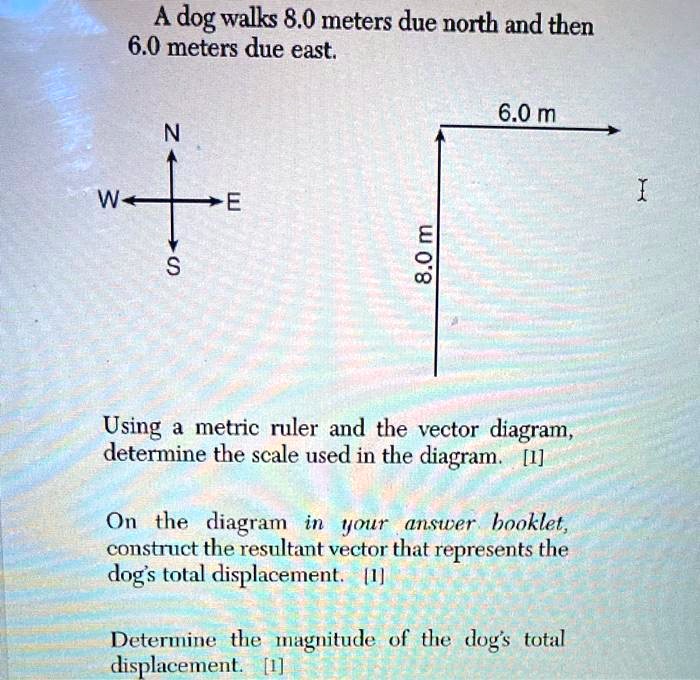

A dog walks 8.0 meters due north and then 6.0 meters due east. N W+E S 6.0 m 8.0 m Using a metric ruler and the vector diagram, determine the scale used in the diagram. [1] On the diagram in your answer booklet, construct the resultant vector that represents the dog's total displacement. [1] Determine the magnitude of the dog's total displacement. [1]

          A dog walks 8.0 meters due north and then 6.0 meters due east.
N
W+E
S
6.0 m
8.0 m
Using a metric ruler and the vector diagram, determine the scale used in the diagram. [1]
On the diagram in your answer booklet, construct the resultant vector that represents the dog's total displacement. [1]
Determine the magnitude of the dog's total displacement. [1]

A dog walks 8.0 meters due north and then 6.0 meters due east.
N
W+E
S
6.0 m
8.0 m
Using a metric ruler and the vector diagram, determine the scale used in the diagram. [1]
On the diagram in your answer booklet, construct the resultant vector that represents the dog's total displacement. [1]
Determine the magnitude of the dog's total displacement. [1]
