Question

+ Vin - L R + Vo -

Name: + Vin - L R + Vo -
Uploaded: 2023-07-05T04:50:24-08:00
Duration: 3 min 44 s
Channel: Madhur L
Description: + Vin - L R + Vo -

          + Vin - L R + Vo -

Added by Melissa A.

University Physics with Modern Physics

Hugh D. Young 14th Edition

Instant Answer

Solved by Expert Madhur L

07/05/2023

Step 1

(a) Vo(jω)/Vin(jω) = -200/10 = 200/10 = 2 Show more…

Show all steps

Thanks for your feedback!

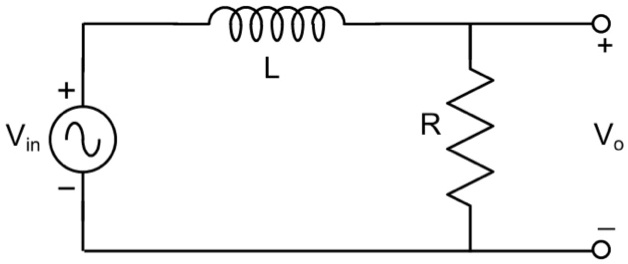

(a) For this circuit, find the transfer function, Vo(jω)/Vin(jω). (b) For L = 200μH and R = 200Ω, calculate the magnitude of the transfer function at ω = 1Mrad/s (10^6 rad/s). (c) Find the phase of the transfer function at ω = 1Mrad/s, in both radians and degrees. (d) If Vin(t) = 10V cos(10^6t + 1.57 radians), what is Vo(t)?
