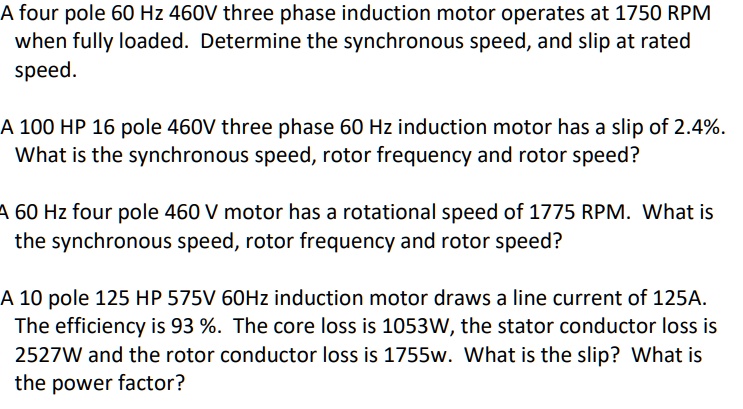

A four pole 60 Hz 460V three phase induction motor operates at 1750 RPM when fully loaded. Determine the synchronous speed, and slip at rated speed. A 100 HP 16 pole 460V three phase 60 Hz induction motor has a slip of 2.4%. What is the synchronous speed, rotor frequency and rotor speed? A 60 Hz four pole 460 V motor has a rotational speed of 1775 RPM. What is the synchronous speed, rotor frequency and rotor speed? A 10 pole 125 HP 575V 60Hz induction motor draws a line current of 125A. The efficiency is 93 %. The core loss is 1053W, the stator conductor loss is 2527W and the rotor conductor loss is 1755w. What is the slip? What is the power factor?
Added by Alicia A.
Close
Step 1
### For the first motor (four-pole 60 Hz 460V three-phase induction motor): ** Show more…
