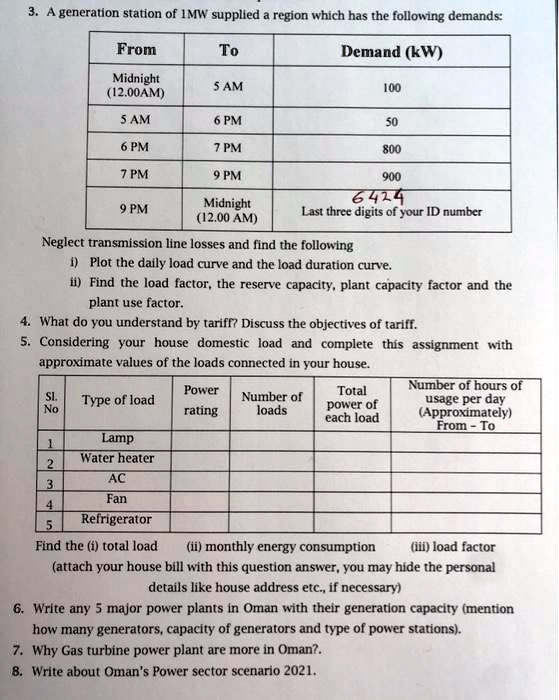

A generation station of 1MW supplied a region which has the following demands:
From | To | Demand (kW)
Midnight (12.00AM) | 5 AM | 100
5 AM | 6 PM | 50
6 PM | 7 PM | 800
7 PM | 9 PM | 900
9 PM | Midnight (12.00 AM) | 6424 Last three digits of your ID number
Neglect transmission line losses and find the following
i) Plot the daily load curve and the load duration curve.
ii) Find the load factor, the reserve capacity, plant capacity factor and the plant use factor.
4. What do you understand by tariff? Discuss the objectives of tariff.
5. Considering your house domestic load and complete this assignment with approximate values of the loads connected in your house.
Sl. No | Type of load | Power rating | Number of loads | Total power of each load | Number of hours of usage per day (Approximately) From - To
1 | Lamp
2 | Water heater
3 | AC
4 | Fan
5 | Refrigerator
Find the (i) total load (ii) monthly energy consumption (iii) load factor
(attach your house bill with this question answer, you may hide the personal details like house address etc., if necessary)
6. Write any 5 major power plants in Oman with their generation capacity (mention how many generators, capacity of generators and type of power stations).
7. Why Gas turbine power plant are more in Oman?.
8. Write about Oman's Power sector scenario 2021.
