A germanium diode draws 40mA with a forward bias of 0.25V. The junction is at room temperature of 293K. Calculate the reverse saturation current of the diode.
Added by Daniel P.
Step 1
This relationship is given by the Shockley diode equation: I = Is * (exp(V/(n*Vt)) - 1) where n is the ideality factor, typically around 1 for germanium diodes. Given that I = 40mA, V = 0.25V, and T = 293K, we can calculate Vt using the Boltzmann constant (k = Show more…
Show all steps
Close
Your feedback will help us improve your experience
T. L. and 52 other Physics 101 Mechanics educators are ready to help you.
Ask a new question
Labs
Want to see this concept in action?
Explore this concept interactively to see how it behaves as you change inputs.
Key Concepts
Recommended Videos
A germanium diode displays a forward voltage of 0.25V at 10mA current at room temperature. Find the reverse saturation current along with the bias voltage required for a diode current of 1mA and 100mA at the same temperature. Estimate the reverse saturation current and the forward current at 0.25V at 30°C above room temperature. (Assume diode ideality factor = 1)
Adi S.
Find the reverse saturation current of the p-n junction Silicon diode which having forward bias 0.2 V at room temperature 290 K with diode current Boltzmann constant 8.62*10-5 eV/K.
Pramod K.

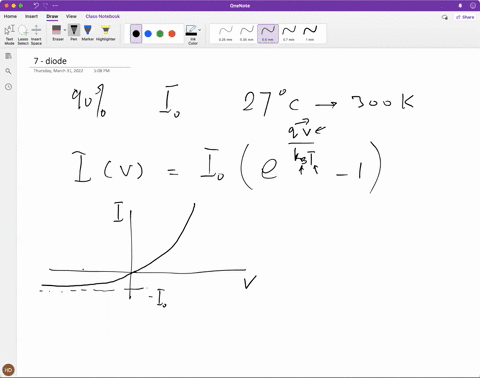

"For what voltage will the reverse current in & p-n junction Germanium diode reach 907 of its saturation value at room temperature of 27'C."
