A gravity dam weighing 8 K is subjected to water pressure on both sides. Determine the resultant moment about the toe of the dam at B.
Added by Bob R.
Close
Step 1
First, we need to find the water pressure acting on both sides of the dam. The water pressure at any point in a fluid is given by the formula P = ρgh, where P is the pressure, ρ is the fluid density, g is the acceleration due to gravity, and h is the depth of the Show more…
Show all steps
Your feedback will help us improve your experience
Deepak Jangra and 57 other Physics 101 Mechanics educators are ready to help you.
Ask a new question
Labs
Want to see this concept in action?
Explore this concept interactively to see how it behaves as you change inputs.
Key Concepts
Recommended Videos

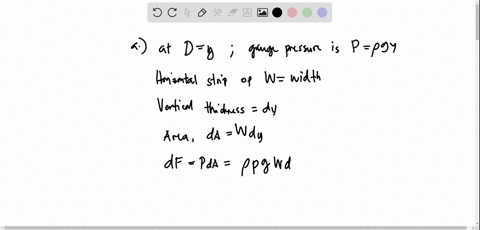

Water Stands Water stands at a depth $D$ behind the vertical upstream face of a dam, as shown in Fig. $15-39 .$ Let $W$ be the width of the dam. Find (a) the net horizontal force on the dam from the gauge pressure of the water and (b) the net torque due to that force (and thus gauge pressure) about a line through $O$ parallel to the width of the dam. (c) Find the moment arm of the net horizontal force about the line through $\underline{O}$.

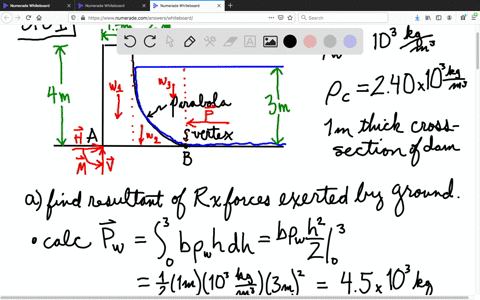

The cross section of a concrete dam is as shown. For a 1 -m-wide dam section determine (a) the resultant of the reaction forces exerted by the ground on the base $A B$ of the dam, $(b)$ the point of application of the resultant of part $a,(c)$ the resultant of the pressure forces exerted by the water on the face $B C$ of the dam.
Distributed Forces: Centroids and Centers of Gravity
Additional Applications of Centroids
Water backs up behind a concrete dam as shown in Fig. 2.109 Leakage under the foundation gives a pressure distribution under the dam as indicated. If the water depth, $h,$ is too great, the dam will topple over about its toe (point $A$ ). For the dimensions given, determine the maximum water depth for the following widths of the dam, $\ell=20,30,40,50,$ and $60 \mathrm{ft} .$ Base your analysis on a unit length of the dam. The specific weight of the concrete is $150 \mathrm{lb} / \mathrm{ft}^{3}$.
