A horizontal bar 2.421 m long with a mass of 87.71 kg is hinged to a wall. The bar is supported from its other end by a cable attached to the wall. The cable has a tension of 850.4 N. What is the angle between the cable and the bar? (in deg) A: 7.967 B: 9.958 C: 1.245 x 10^1 D: 1.556 x 10^1 E: 1.945 x 10^1 F: 2.431 x 10^1 G: 3.039 x 10^1 H: 3.799 x 10^1

          A horizontal bar 2.421 m long with a mass of 87.71 kg is hinged to a wall. The bar is supported from its other end by a cable attached to the wall. The cable has a tension of 850.4 N. What is the angle between the cable and the bar?
(in deg)
A: 7.967
B: 9.958
C: 1.245 x 10^1
D: 1.556 x 10^1
E: 1.945 x 10^1
F: 2.431 x 10^1
G: 3.039 x 10^1
H: 3.799 x 10^1

Show more…

A horizontal bar 2.421 m long with a mass of 87.71 kg is hinged to a wall. The bar is supported from its other end by a cable attached to the wall. The cable has a tension of 850.4 N. What is the angle between the cable and the bar?
(in deg)
A: 7.967
B: 9.958
C: 1.245 x 10^1
D: 1.556 x 10^1
E: 1.945 x 10^1
F: 2.431 x 10^1
G: 3.039 x 10^1
H: 3.799 x 10^1

Added by Mar-A M.

University Physics with Modern Physics

Wolfgang Bauer, Gary D. Westfall 2nd Edition

Chapter 11

Instant Answer

Solved by Expert Adi S

06/14/2023

Step 1

We can do this by multiplying the mass of the bar by the acceleration due to gravity (9.81 m/s^2): F_weight = m*g F_weight = 87.71 kg * 9.81 m/s^2 F_weight = 859.1 N Show more…

Show all steps

lock

Thanks for your feedback!

A horizontal bar 2.421 m long with a mass of 87.71 kg is hinged to a wall. The bar is supported from its other end by a cable attached to the wall. The cable has a tension of 850.4 N. What is the angle between the cable and the bar? (in deg) A: 7.967 B: 9.958 C: 1.245x10^1 D: 1.556x10^1 E: 1.945x10^1 F: 2.431x10^1 G: 3.039x10^1 H: 3.799x10^1

Play audio

Feedback

Powered by NumerAI

Adi S and 61 other subject Physics 101 Mechanics educators are ready to help you.

Ask a new question

Labs

Want to see this concept in action?

NEW

Explore this concept interactively to see how it behaves as you change inputs.

View Labs

Key Concepts

Recommended Videos

Recommended Textbooks

Transcript

00:01 So, let us start with the concept which we are going to use here for this question.

00:06 Since we know the sum of the force, this is going to be equals to zero according to newton's second law.

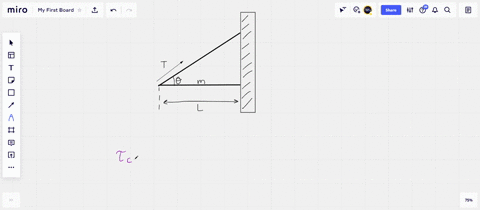

00:13 So, according to question let's suppose this is nothing but a wall by which a rod is supported in such a way that by an, what we will say, a cable, okay, and a load is applied onto this one end of the rod.
