Question

Vs R1 W C1 a) In the limit as \(\omega \to 0\), determine the voltage across the capacitor b) In the limit as \(\omega \to \infty\), determine the voltage across the capacitor. c) Based on your above two answers, when the output is the capacitor voltage, are high frequencies 'passed' or 'stopped'? d) Based on your previous answer, what type of filter is implemented when the output is the capacitor voltage? e) In the limit as \(\omega \to 0\), determine the voltage across the resistor f) In the limit as \(\omega \to \infty\), determine the voltage across the resistor. g) Based on your above two answers, when the output is the resistor voltage, are high frequencies 'passed' or 'stopped'? h) Based on your previous answer, what type of filter is implemented when the output is the resistor voltage?

          Vs
R1
W
C1

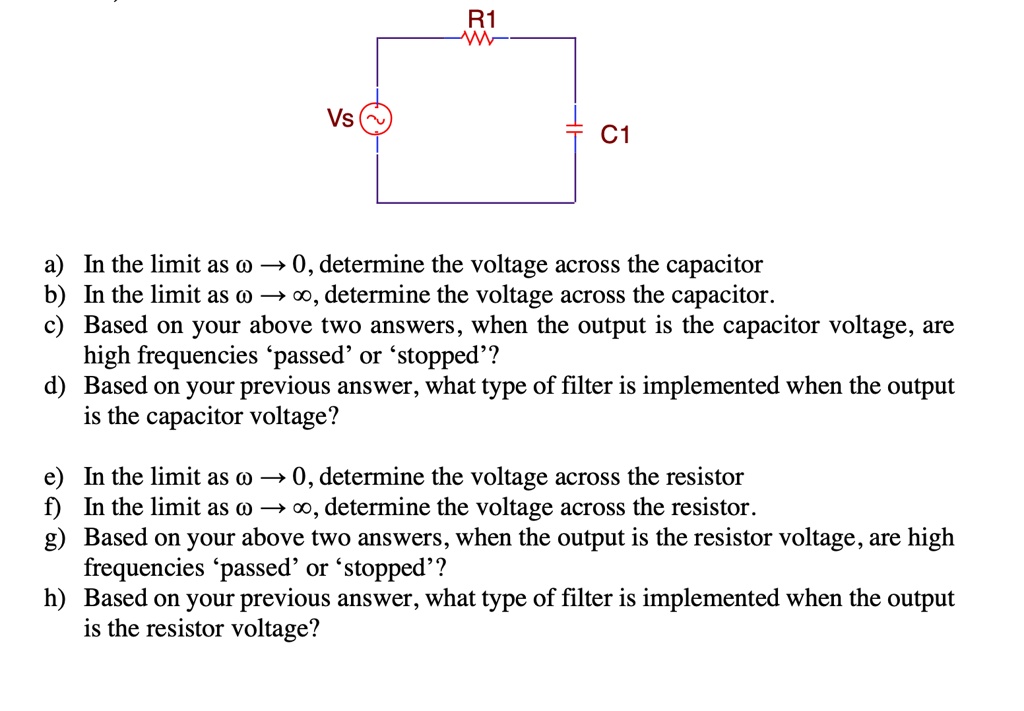

a) In the limit as \(\omega \to 0\), determine the voltage across the capacitor
b) In the limit as \(\omega \to \infty\), determine the voltage across the capacitor.
c) Based on your above two answers, when the output is the capacitor voltage, are
high frequencies 'passed' or 'stopped'?
d) Based on your previous answer, what type of filter is implemented when the output
is the capacitor voltage?
e) In the limit as \(\omega \to 0\), determine the voltage across the resistor
f) In the limit as \(\omega \to \infty\), determine the voltage across the resistor.
g) Based on your above two answers, when the output is the resistor voltage, are high
frequencies 'passed' or 'stopped'?
h) Based on your previous answer, what type of filter is implemented when the output
is the resistor voltage?

Vs
R1
W
C1
a) In the limit as ω→ 0, determine the voltage across the capacitor
b) In the limit as ω→∞, determine the voltage across the capacitor.
c) Based on your above two answers, when the output is the capacitor voltage, are
high frequencies 'passed' or 'stopped'?
d) Based on your previous answer, what type of filter is implemented when the output
is the capacitor voltage?
e) In the limit as ω→ 0, determine the voltage across the resistor
f) In the limit as ω→∞, determine the voltage across the resistor.
g) Based on your above two answers, when the output is the resistor voltage, are high
frequencies 'passed' or 'stopped'?
h) Based on your previous answer, what type of filter is implemented when the output
is the resistor voltage?
