Question

A loop of wire was bent into the shape shown below. Two arcs connected by radial wires. If the angle $\theta$ is in units of radians, what is the magnitude and the direction of the magnetic field at point C. I $R_2$ I I $R_1$ $\theta$ C Lütfen birini seçin: a. $B = \frac{\mu_0 I}{4\pi} \theta (\frac{1}{R_1} - \frac{1}{R_2}) \odot$ b. $B = \frac{\mu_0 I}{4\pi} \theta (\frac{1}{R_1} - \frac{1}{R_2}) \otimes$ c. 0 d. $B = \frac{\mu_0 I}{4\pi} \theta (\frac{1}{R_1} + \frac{1}{R_2}) \otimes$ e. $B = \frac{\mu_0 I}{4\pi} \theta (\frac{1}{R_1} + \frac{1}{R_2}) \odot$

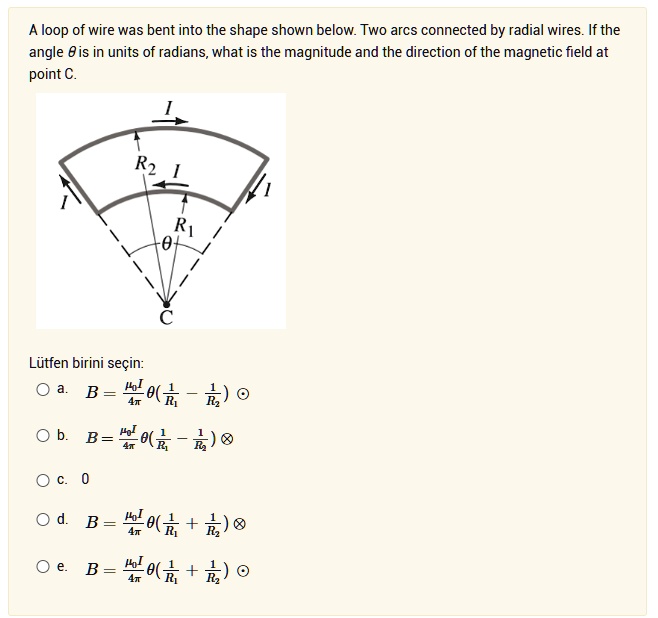

          A loop of wire was bent into the shape shown below. Two arcs connected by radial wires. If the angle $\theta$ is in units of radians, what is the magnitude and the direction of the magnetic field at point C.
I
$R_2$ I
I
$R_1$
$\theta$
C
Lütfen birini seçin:
a. $B = \frac{\mu_0 I}{4\pi} \theta (\frac{1}{R_1} - \frac{1}{R_2}) \odot$
b. $B = \frac{\mu_0 I}{4\pi} \theta (\frac{1}{R_1} - \frac{1}{R_2}) \otimes$
c. 0
d. $B = \frac{\mu_0 I}{4\pi} \theta (\frac{1}{R_1} + \frac{1}{R_2}) \otimes$
e. $B = \frac{\mu_0 I}{4\pi} \theta (\frac{1}{R_1} + \frac{1}{R_2}) \odot$

Show more…

a loop of wire was bent into the shape shown below two arcs connected by radial wires if the angle theta is in units of radians what is the magnitude and the direction of the magnetic field 81888

Added by Courtney M.

University Physics with Modern Physics

Hugh D. Young 14th Edition

Instant Answer

Solved by Expert Aparna Shakti

06/06/2023

Step 1

The magnetic field at point C is due to four segments of the wire: 1. The inner arc with radius $R_1$. 2. The outer arc with radius $R_2$. 3. The two radial wires connecting the arcs. Step 2: Analyze the magnetic field due to the radial wires. For the two radial Show more…
