A lossless transmission line with a characteristic impedance of 50 omhs is terminated by a purely resistive load. Find the maximum and minimum load impedance in order for the voltage standing wave ratio to stay below 2.3.
Added by Bryan M.
Step 1
It is given by the formula: VSWR = (1 + |Γ|) / (1 - |Γ|) where Γ is the reflection coefficient, which is defined as the ratio of the reflected wave to the incident wave. It is given by the formula: Γ = (ZL - Z0) / (ZL + Z0) where ZL is the load impedance and Show more…
Show all steps
Your feedback will help us improve your experience
Narayan Hari and 88 other Physics 101 Mechanics educators are ready to help you.
Ask a new question
Labs
Want to see this concept in action?
Explore this concept interactively to see how it behaves as you change inputs.
Key Concepts
Recommended Videos
A lossless transmission line has a characteristic impedance of 50 Ω and is terminated with an unknown load. The standing wave ratio on the line is 3.0. Successive voltage minimums are 20 cm apart, and the first minimum is 5 cm from the load. Determine the value of terminating load
Lainey R.
A 50-ohm lossless transmission line is terminated in a load with impedance ZL = (30 - j50) ohms. The wavelength is 8 cm. Find: (a) the reflection coefficient at the load, (b) the standing-wave ratio on the line, (c) the position of the voltage maximum nearest the load, (d) the position of the current maximum nearest the load
Adi S.

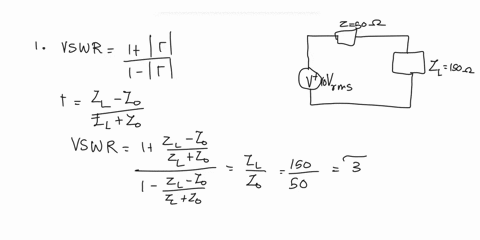

A lossless transmission line has the characteristic impedance 50 Ω and is terminated in a load of 150 Ω. The magnitude of the voltage wave incident of the line is 10 V rms. Determine: 1 The VSWR on the line. (3) 2 The maximum voltage and minimum voltage of the line. (4) 3 The maximum current and minimum current on the line. (4) 4 Power transmitted by line. (2)
