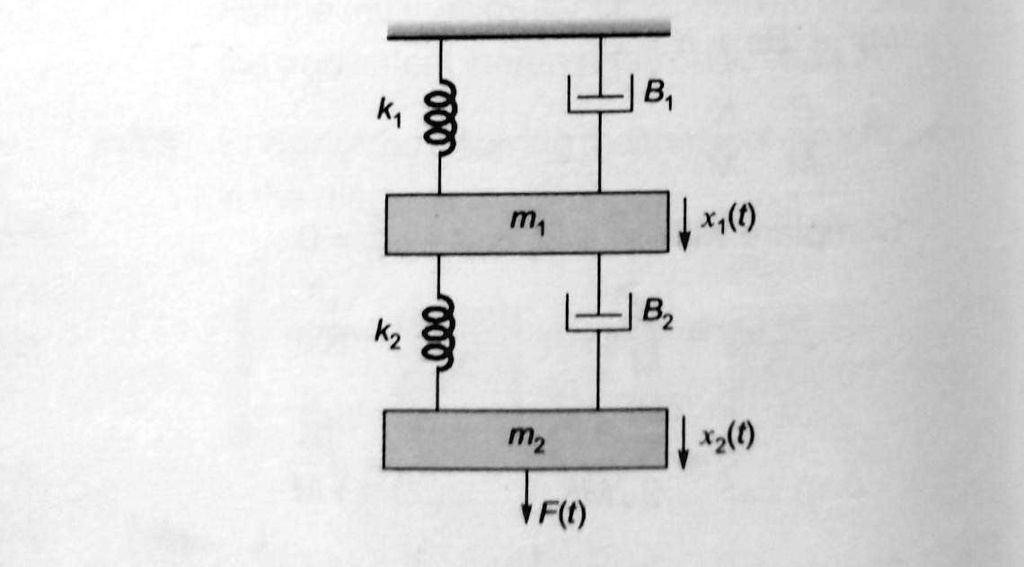

k1 B1 m1 x1(t) k2 B2 m2 x2(t) F(t)
Added by Renee M.
Close
Step 1
In this case, we have two mass-spring-friction systems. Each system can be represented by a second order differential equation because it involves two energy storage elements (mass and spring). Show more…
Show all steps
Your feedback will help us improve your experience
Adi S and 59 other Chemistry 101 educators are ready to help you.
Ask a new question
Labs
Want to see this concept in action?
Explore this concept interactively to see how it behaves as you change inputs.
Key Concepts
Recommended Videos

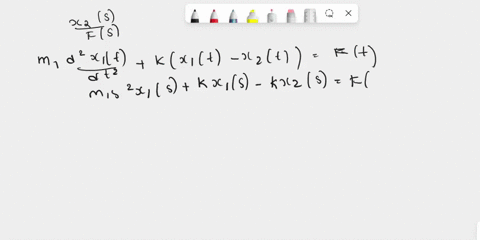

Determine the transfer function X2(s)/F(s) for the system shown in Figure E2.26. Both masses slide on a frictionless surface and k = 1 N/m. X2(s) / F(s) = 1 / (s^2(s^2 + 2)) x1(t) x2(t) m1 = 1 kg k F(t) m2 = 1 kg FIGURE E2.26 Two connected masses on a frictionless surface.
Adi S.
1. Find the transfer function (X1(s)/F(s)) of the given mechanical system shown below using: a. translational mechanical system b. series analogy
