A mine cage with a mass of 3500 kg is raised with uniform velocity. Drum of hoisting machine has a diameter of 1.8 m, mass of 900 kg and radius of gyration of 550 mm. Determine the torque required at the drum of lifting machine.
Added by Joshua J.
Close
Step 1
Step 1: The torque required at the drum of lifting machine is equal to the moment of inertia of the drum multiplied by its angular acceleration. Show more…
Show all steps
Your feedback will help us improve your experience
Supreeta N and 73 other Physics 101 Mechanics educators are ready to help you.
Ask a new question
Labs
Want to see this concept in action?
Explore this concept interactively to see how it behaves as you change inputs.
Key Concepts
Recommended Videos

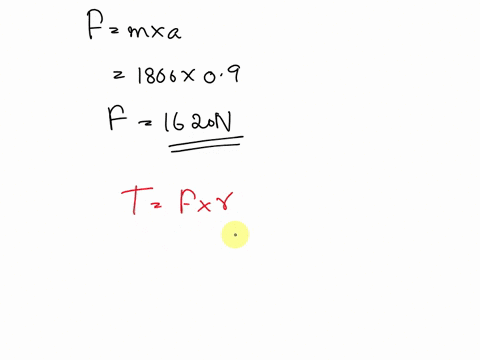

A hoist with 1.2 m diameter drum lifts a cage by means of a wire rope that winds on the drum. The drum is driven by an electric motor through a double reduction gear. Determine the motor torque to give the cage acceleration upwards of 0.9 m/s^2, given the following data: Speed (rev/min) 1440 340 75 75 Mass (kg) 230 360 900 1100 1800 450 k (mm) 115 240 650 550 - Rotor of motor Intermediate gear Low speed gear Drum and shaft Cage Rope
Supreeta N.
A hoist has a winding drum 0.9 m effective diameter and a radius of gyration of 0.35 m, the mass of the drum being 100 kg. A load of 320 kg is to be raised 36 m, the mass of the lifting rope being 1 kg/m. If the acceleration is 1.8 m/s2 until a constant velocity of 6 m/s is reached, find the power necessary just at the end of the acceleration.
Adi S.
A motor supplies a constant torque $M=6 \mathrm{kN} \cdot \mathrm{m}$ to the winding drum that operates the clevator. If the elevator has a mass of $900 \mathrm{kg}$, the counterweight $C$ has a mass of $200 \mathrm{kg}$, and the winding drum has a mass of $600 \mathrm{kg}$ and radius of gyration about its axis of $k=0.6 \mathrm{m},$ determine the speed of the elevator after it rises $5 \mathrm{m}$ starting from rest. Neglect the mass of the pulleys.
