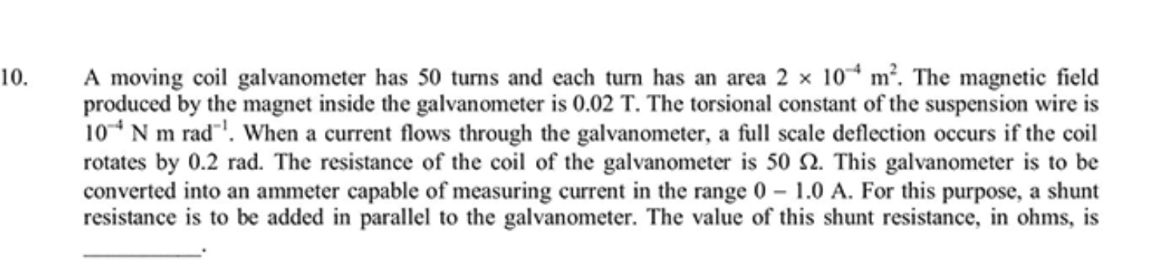

A moving coil galvanometer has 50 turns and each turn has an area 2 x 10^-4 m^2. The magnetic field produced by the magnet inside the galvanometer is 0.02 T. The torsional constant of the suspension wire is 10^-4 N m rad^-1. When a current flows through the galvanometer, a full scale deflection occurs if the coil rotates by 0.2 rad. The resistance of the coil of the galvanometer is 50 ?. This galvanometer is to be converted into an ammeter capable of measuring current in the range 0 - 1.0 A. For this purpose, a shunt resistance is to be added in parallel to the galvanometer. The value of this shunt resistance, in ohms, is ________.
Added by Michael P.
Close
Step 1
02 T) - \( \theta \) is the angle of deflection (0.2 rad) ** Show more…
Show all steps
Your feedback will help us improve your experience
Khoobchandra Agrawal and 78 other Physics 102 Electricity and Magnetism educators are ready to help you.
Ask a new question
Labs
Want to see this concept in action?
Explore this concept interactively to see how it behaves as you change inputs.
Key Concepts
Recommended Videos

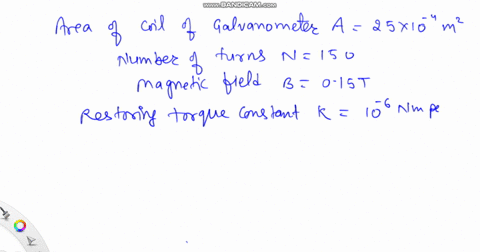

The coil area of a galvanometer is 25 × 10^-4 m^2. It consists of 150 turns of wire and is in a magnetic field of 0.15 T. The restoring torque constant of the suspension fiber is 10^-6 Nm per degree. Assuming the magnetic field to be radial, calculate the maximum current that can be measured by the galvanometer if the scale can accommodate a 30° deflection.
Vishal G.

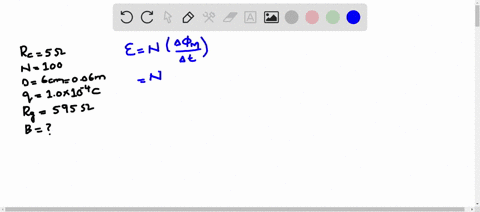

A $5.0-\Omega$ coil, of 100 turns and diameter $6.0 \mathrm{~cm}$, is placed between the poles of a magnet so that the magnetic flux is maximum through the coil's cross-sectional area. When the coil is suddenly removed from the field of the magnet, a charge of $1.0 \times 10^{-4} \mathrm{C}$ flows through a 595-\Omega galvanometer connected to the coil. Compute $B$ between the poles of the magnet. As the coil is removed, the flux changes from $B A$, where $A$ is the coil's cross-sectional area, to zero. Therefore, $$ |\mathscr{E}|=N\left|\frac{\Delta \Phi_{M}}{\Delta t}\right|=N \frac{B A}{\Delta t} $$ We are told that $\Delta q=1.0 \times 10^{-4} \mathrm{C} .$ But, by Ohm's Law, $$ |\varepsilon|=I R=\frac{\Delta q}{\Delta t} R $$ where $R=600 \Omega$ is the total resistance. If we now equate these two expressions for $|\varepsilon|$ and solve for $B$, we find $$ B=\frac{R \Delta q}{N A}=\frac{(600 \Omega)\left(1.0 \times 10^{-4} \mathrm{C}\right)}{(100)\left(\pi \times 9.0 \times 10^{-4} \mathrm{~m}^{2}\right)}=0.21 \mathrm{~T} $$
