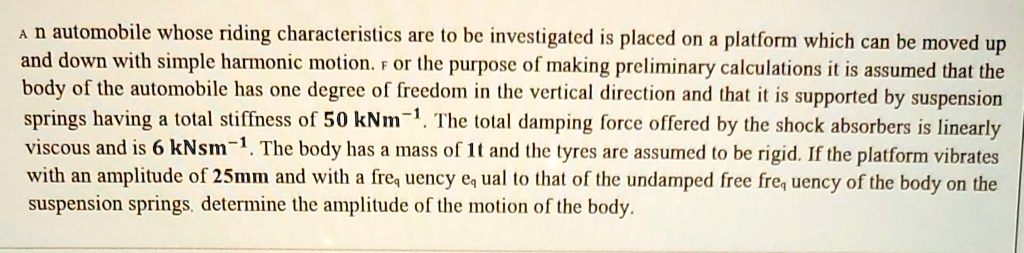

An automobile whose riding characteristics are to be investigated is placed on a platform which can be moved up and down with simple harmonic motion. For the purpose of making preliminary calculations it is assumed that the body of the automobile has one degree of freedom in the vertical direction and that it is supported by suspension springs having a total stiffness of 50 kNm?¹. The total damping force offered by the shock absorbers is linearly viscous and is 6 kNsm?¹. The body has a mass of 1t and the tyres are assumed to be rigid. If the platform vibrates with an amplitude of 25mm and with a frequency equal to that of the undamped free frequency of the body on the suspension springs, determine the amplitude of the motion of the body.
Added by Alfredo A.
Close
Step 1
First, we need to find the undamped natural frequency of the body on the suspension springs. We can use the formula: ωn = √(k/m) where ωn is the natural frequency, k is the total stiffness of the suspension springs, and m is the mass of the body. Plugging in the Show more…
Show all steps
Your feedback will help us improve your experience
Adi S and 101 other Physics 101 Mechanics educators are ready to help you.
Ask a new question
Labs
Want to see this concept in action?
Explore this concept interactively to see how it behaves as you change inputs.
Key Concepts
Recommended Videos

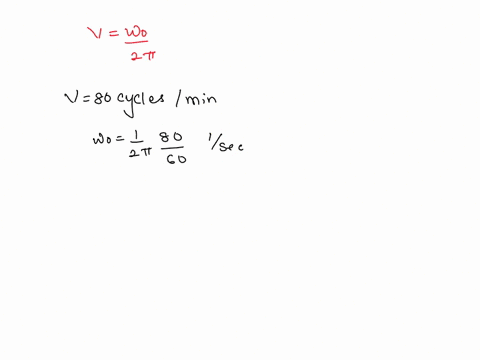

Car suspension This problem deals with a highly simplified model car of weight 3200 lb (mass m = 100 slugs in fps units). Assume that the suspension system acts like a single spring and its shock absorbers like a single dashpot, so that its vertical vibrations satisfy the mass-spring free damped motion equation with appropriate values of the coefficients. Find the stiffness coefficient k of the spring if the car undergoes free vibrations at 80 cycles per minute (cycles/min) when its shock absorbers are disconnected. With the shock absorbers connected, the car is set into vibration by driving it over a bump, and the resulting damped vibrations have a frequency of 78 cycles/min. After how long will the time-varying amplitude be 1% of its initial value? A body weighing 100 lb is oscillating attached to a spring and damping system. Its first two maximum displacements of 6.73" and 1.46" are observed to occur at times 0.17 and 1.17, respectively. Compute the damping constant (in pound-seconds per foot) and spring constant (in pounds per foot).
Madhur L.
Determine the amplitude of vertical vibration of the car as it travels at a velocity $v=40 \mathrm{km} / \mathrm{h}$ over the wavy road whose contour may be expressed as a sine or cosine function with a double amplitude $2 b=50 \mathrm{mm} .$ The mass of the car is $1800 \mathrm{kg}$ and the stiffness of each of the four car springs is $35 \mathrm{kN} / \mathrm{m}$ Assume that all four wheels are in continuous con- tact with the road, and neglect damping. Note that the wheelbase of the car and the spatial period of the road are the same at $L=3 \mathrm{m},$ so that it may be assumed that the car translates but does not rotate. At what critical speed $v_{c}$ is the vertical vibration of the car at its maximum?

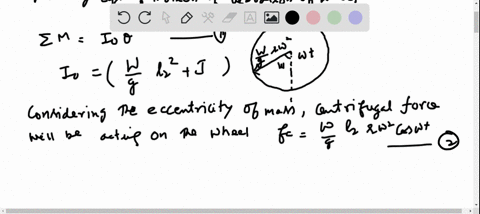

The elements of the "swing-axle" type of independent rear suspension for automobiles are depicted in the figure. The differential $D$ is rigidly attached to the car frame. The half-axles are pivoted at their inboard ends (point $O$ for the half-axle shown) and are rigidly attached to the wheels. Suspension elements not shown constrain the wheel motion to the plane of the figure. The weight of the wheeltire assembly is $W=100 \mathrm{lb}$, and its mass moment of inertia about a diametral axis passing through its mass center $G$ is 1 lb-ft-sec $^{2}$. The weight of the half-axle is negligible. The spring rate and shockabsorber damping coefficient are $k=50 \mathrm{lb} / \mathrm{in.}$ and $c=200$ lb-sec/ft, respectively. If a static tire imbalance is present, as represented by the additional concentrated weight $w=0.5 \mathrm{lb}$ as shown, determine the angular velocity $\omega$ which results in the suspension system being driven at its undamped natural frequency. What would be the corresponding vehicle speed $v ?$ Determine the damping ratio $\zeta$ Assume small angular deflections and neglect gyroscopic effects and any car frame vibration. In order to avoid the complications associated with the varying normal force exerted by the road on the tire, treat the vehicle as being on a lift with the wheels hanging free.
