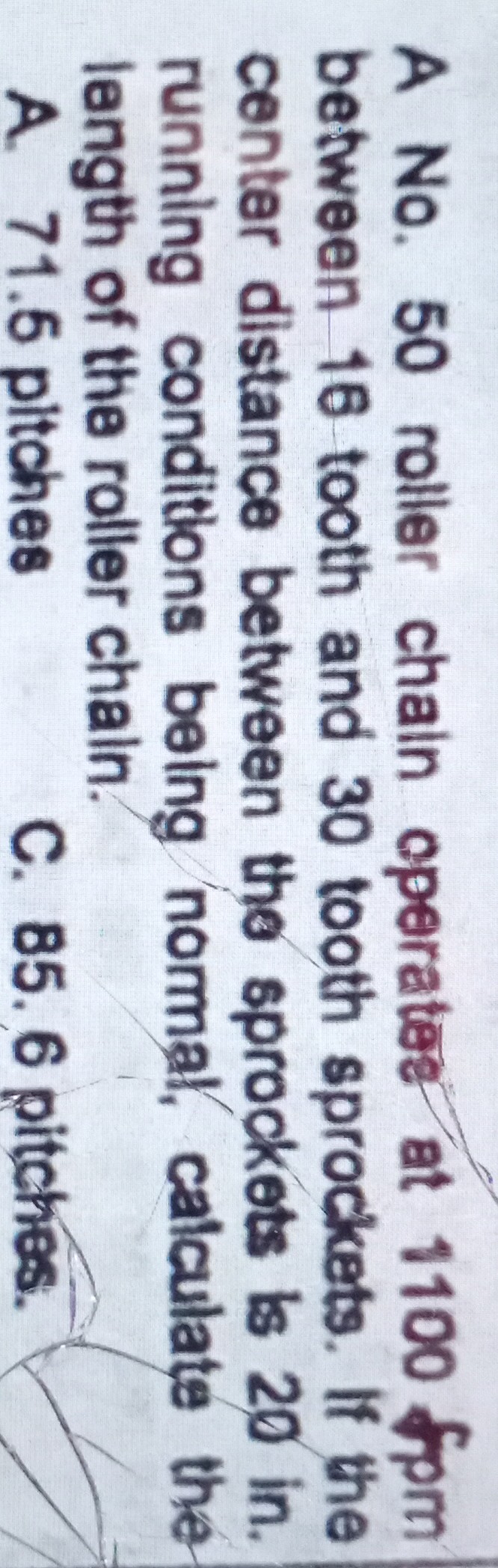

A No. 50 roller chain operates at 1100 fpm between 16 tooth and 30 tooth sprockets. If the center distance between the sprockets is 20 in . running conditions being normal, calculate the length of the roller chain. A. 71.5 pltches C. 85.6 pitches.
Added by Deborah P.
Close
Step 1
- Number of teeth on the smaller sprocket (\(N_1\)) = 16 - Number of teeth on the larger sprocket (\(N_2\)) = 30 - Center distance between sprockets (\(C\)) = 20 inches - Chain speed = 1100 feet per minute (fpm) Show more…
Show all steps
Your feedback will help us improve your experience
Adi S and 55 other Physics 101 Mechanics educators are ready to help you.
Ask a new question
Labs
Want to see this concept in action?
Explore this concept interactively to see how it behaves as you change inputs.
Key Concepts
Recommended Videos
A 3/4 pitch roller chain is running on a 15-tooth sprocket at 2000 rpm. Determine the maximum, minimum, and average linear velocity of the chain.
Adi S.

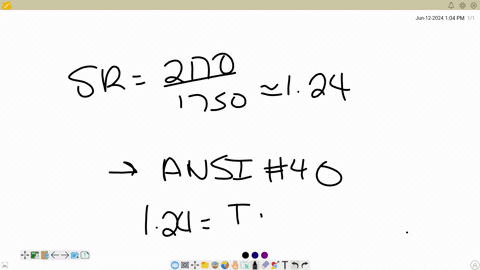

Q2) It is desired to use a roller chain drive for the spindle of a new rotating shaft fatigue testing machine. The drive motor operates at 1750 rpm and the fatigue machine spindle must operate at 2170 rpm. It is estimated that the chain must transmit 12 hp. Spindle-speed variation of no more than 1 percent can be tolerated. What minimum sprocket size should be used?
