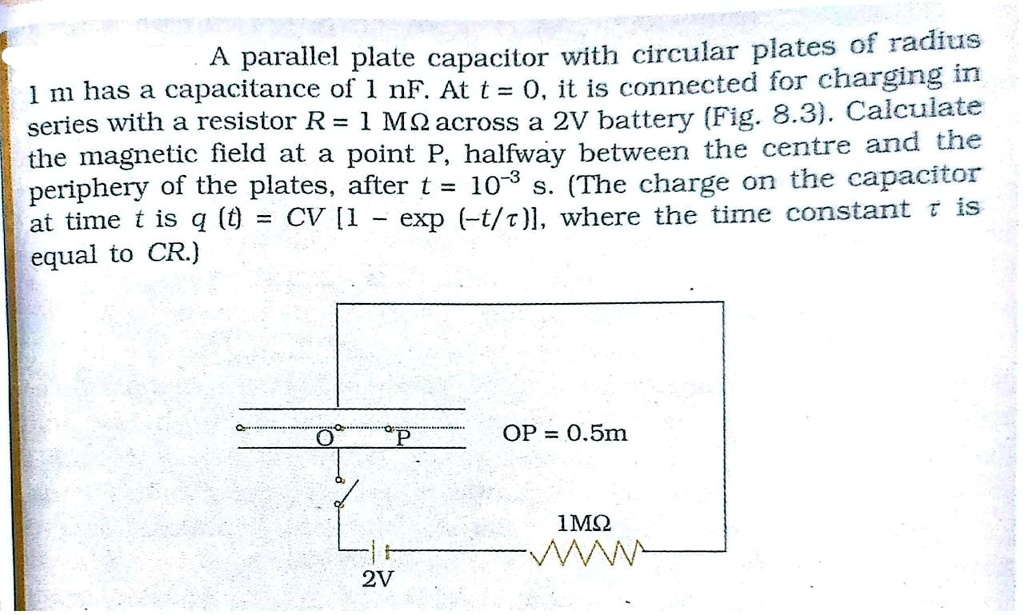

A parallel plate capacitor with circular plates of radius 1 m has a capacitance of 1 nF. At t = 0, it is connected for charging in series with a resistor R = 1 M? across a 2V battery (Fig. 8.3). Calculate the magnetic field at a point P, halfway between the centre and the periphery of the plates, after t = 10^-3 s. (The charge on the capacitor at time t is q (t) = CV [1 - exp (-t/?)], where the time constant ? is equal to CR.) OP = 0.5m 1M? 2V

          A parallel plate capacitor with circular plates of radius 1 m has a capacitance of 1 nF. At t = 0, it is connected for charging in series with a resistor R = 1 M? across a 2V battery (Fig. 8.3). Calculate the magnetic field at a point P, halfway between the centre and the periphery of the plates, after t = 10^-3 s. (The charge on the capacitor at time t is q (t) = CV [1 - exp (-t/?)], where the time constant ? is equal to CR.)

OP = 0.5m
1M?
2V

A parallel plate capacitor with circular plates of radius 1 m has a capacitance of 1 nF. At t = 0, it is connected for charging in series with a resistor R = 1 M? across a 2V battery (Fig. 8.3). Calculate the magnetic field at a point P, halfway between the centre and the periphery of the plates, after t = 10^-3 s. (The charge on the capacitor at time t is q (t) = CV [1 - exp (-t/?)], where the time constant ? is equal to CR.)

OP = 0.5m
1M?
2V

Added by Rachel C.

University Physics with Modern Physics

Hugh D. Young 14th Edition

Instant Answer

Solved by Expert Sri K

01/09/2023

Step 1

Draw the schematic of the capacitor and the battery. Show more…

Show all steps

Thanks for your feedback!

A parallel plate capacitor with circular plates of radius 1 m has a capacitance of 1 nF. At t = 0, it is connected for charging in series with a resistor R = 1 M̦ across a 2V battery (Fig. 8.3). Calculate the magnetic field at a point P, halfway between the centre and the periphery of the plates, after t = 10^-3 s. (The charge on the capacitor at time t is q (t) = CV [1 - exp (-t/τ)], where the time constant τ is equal to CR.) OP = 0.5m 1MΩ 2V
