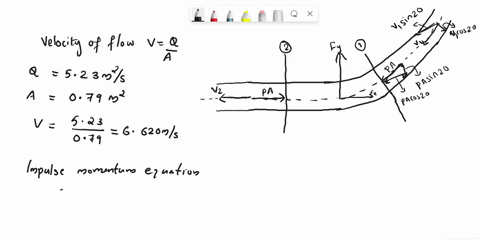

A point where the floe undergoes a 20 degree change in direction a penstock pipeline is secured by a thrust lock
Added by James R.
Step 1
Step 1: Identify that the point is a bend in the penstock where the flow direction changes (20-degree bend). Show more…
Show all steps
Your feedback will help us improve your experience
Adi S and 66 other Physics 101 Mechanics educators are ready to help you.
Ask a new question
Labs
Want to see this concept in action?
Explore this concept interactively to see how it behaves as you change inputs.
Key Concepts
Recommended Videos
Adi S.

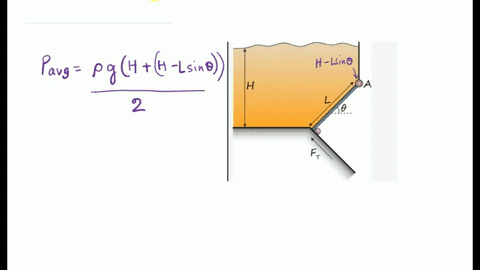

The gate shown in the figure is pinned at point A and prevents liquid from escaping the fluid region. The liquid depth H = 13.25 m, the gate length L = 4.3 m, the gate width into the page W = 9.3 m, and the gate is oriented at an angle ̸ = 49.5° above the horizontal plane. If the liquid in the fluid region is water at a temperature of 20° C, determine the force Fₒ delivered by the stop. Fₒ = MN
Sparsha S.

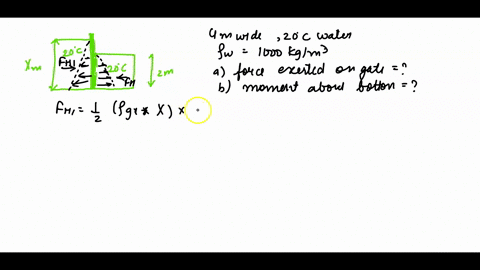

A vertical lock gate is 4 m wide and separates 20
Amit S.
