Question

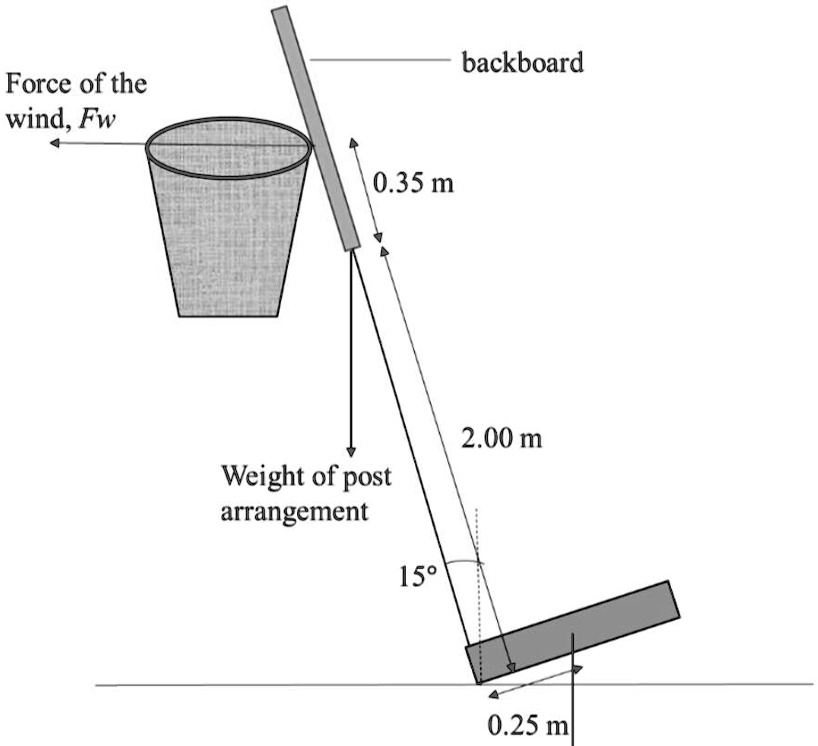

Force of the wind, Fw 0.35 m Weight of post arrangement 15° backboard 2.00 m 0.25 m

          Force of the
wind, Fw
0.35 m
Weight of post
arrangement
15°
backboard
2.00 m
0.25 m

Added by Victoria G.

University Physics with Modern Physics

Hugh D. Young 14th Edition

Instant Answer

Solved by Expert Hafiz Shahzaib

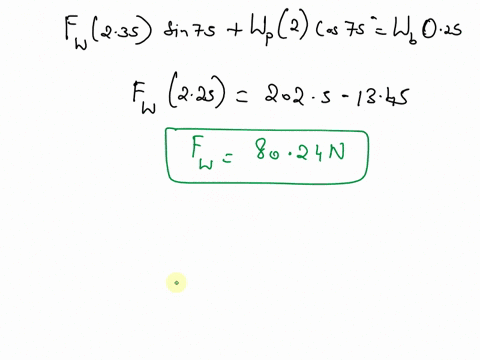

Step 1

Torque is the force multiplied by the distance from the pivot point (in this case, the edge of the base). The torque caused by the wind force is: Torque_wind = Fw * 2.00 m The torque caused by the weight of the post arrangement is: Torque_weight = 26.0 N * 0.25 Show more…

Show all steps

Thanks for your feedback!

'A portable basketball set has a base and a post arrangement. The post arrangement consists of a post, backboard, hoop and net. The base can be filled with water to increase stability. The maximum weight of the base is about 810 N and the weight of the post arrangement is 26.0 N. The basketball set may topple over when the wind blows due to the large area of the backboard. a) Determine the minimum force of the wind, Fw that will cause the basketball set to be blown over when it is at the angle shown. Ignore the effect of the wind on the base. b) The base is filled with sand instead of water. The density of the sand is greater than the density of the water. Justify what would happen to the value of Fw calculated in part (a). backboard Force of the wind, Fw 0.35 m 2.00 m Weight of post arrangement 159 0.25 m'
