A power amplifier has a gain of 20 dB and an input level of 2 volts. Assuming that the input and output impedances are the same, what is the voltage level at the amplifier output? 10 V 20 V 30 V 40 V
Added by Jamie R.
Step 1
Gain in dB is given by the formula: \( G_{dB} = 20 \log_{10} \left(\frac{V_{out}}{V_{in}}\right) \), where \( V_{out} \) is the output voltage and \( V_{in} \) is the input voltage. Show more…
Show all steps
Close
Your feedback will help us improve your experience
Adi S and 72 other Physics 102 Electricity and Magnetism educators are ready to help you.
Ask a new question
Labs
Want to see this concept in action?
Explore this concept interactively to see how it behaves as you change inputs.
Key Concepts
Recommended Videos

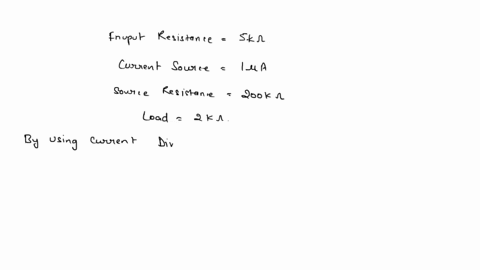

An amplifier with an input resistance of 5 k, when driven by a current source of 1 ÎĽA and a source resistance of 200 k, has a short-circuit output current of 5 mA and an open-circuit output voltage of 10 V. If the amplifier is used to drive a 2-k load, give the values of the voltage gain, current gain, and power gain expressed as ratios and in decibels.
Sri K.

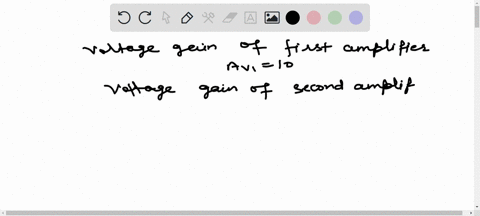

Two amplifier are connected after the orher in series (cascaded). The first amplifier has a voltage gain of 10 and the second has a voltage gain of 20 . If the input signal is $0.01 \mathrm{~V}$, calculate the output AC signal. (a) $3.6 \mathrm{~V}$ (b) $4.2 \mathrm{~V}$ (c) $2.0 \mathrm{~V}$ (d) $5.2 \mathrm{~V}$
