A proton with mass $m$ moves in one dimension. The potential-energy function is $U(x)=\left(\alpha / x^{2}\right)-(\beta / x),$ where $\alpha$ and $\beta$ are positive constants. The proton is released from rest at $x_{0}=\alpha / \beta$. (a) Show that $U(x)$ can be written as $$ Graph $U(x) .$ Calculate $U\left(x_{0}\right)$ and thereby locate the point $x_{0}$ on the graph. (b) Calculate $v(x)$, the speed of the proton as a function of position. Graph $v(x)$ and give a qualitative description of the motion. (c) For what value of $x$ is the speed of the proton a maximum? What is the value of that maximum speed? (d) What is the force on the proton at the point in part (c)? (e) Let the proton be released instead at $x_{1}=3 \alpha / \beta .$ Locate the point $x_{1}$ on the graph of $U(x) .$ Calculate $v(x)$ and give a qualitative description of the motion. (f) For each release point $\left(x=x_{0}\right.$ and $\left.x=x_{1}\right),$ what are the maximum and minimum values of $x$ reached during the motion? U(x)=\frac{\alpha}{x_{0}^{2}}\left[\left(\frac{x_{0}}{x}\right)^{2}-\frac{x_{0}}{x}\right] $$

A proton with mass $m$ moves in one dimension. The potential-energy function is $U(x) = (\alpha/x^2) - (\beta/x)$, where $\alpha$ and $\beta$ are positive constants. The proton is released from rest at $x_0$ = $\alpha$/$\beta$. (a) Show that $U(x)$ can be written as $$U(x) = \frac{\alpha}{x^2_0}\ \Big[ \Big( \frac{x_0}{x}\ \Big)^2 - \frac{x_0}{x}\ \Big] $$ Graph $U(x)$. Calculate $U(x_0)$ and thereby locate the point $x_0$ on the graph. (b) Calculate $v(x)$, the speed of the proton as a function of position. Graph $v(x)$ and give a qualitative description of the motion. (c) For what value of $x$ is the speed of the proton a maximum? What is the value of that maximum speed? (d) What is the force on the proton at the point in part (c)? (e) Let the proton be released instead at $x_1 = 3\alpha / \beta$. Locate the point $x_1$ on the graph of $U(x)$. Calculate $v(x)$ and give a qualitative description of the motion. (f) For each release point ($x = x_0$ and $x = x_1$), what are the maximum and minimum values of $x$ reached during the motion?

A proton with mass $m$ moves in one dimension. The potential-energy function is $U(x)=\alpha / x^{2}-\beta / x,$ where $\alpha$ and $\beta$ are positive constants. The proton is released from rest at $x_{0}=\alpha / \beta$ (a) Show that $U(x)$ can be written as $$ U(x)=\frac{\alpha}{x_{0}^{2}}\left[\left(\frac{x_{0}}{x}\right)^{2}-\frac{x_{0}}{x}\right] $$ Graph $U(x)$ . Calculate $U\left(x_{0}\right)$ and thereby locate the point $x_{0}$ on the graph. (b) Calculate $v(x),$ the speed of the proton as a function of position. Graph $v(x)$ and give a qualitative description of the motion. (c) For what value of $x$ is the speed of the proton a maximum? What is the value of that maximum speed? (d) What is the force on the proton at the point in part (c)? (e) Let the proton be released instead at $x_{1}=3 \alpha / \beta$ . Locate the point $x_{1}$ on the graph of $U(x)$ . Calculate $v(x)$ and give a qualitative description of the motion. (f) For each release point $\left(x=x_{0} \text { and } x=x_{1}\right),$ what are the maximum and minimum values of $x$ reached during the motion?

Transcript

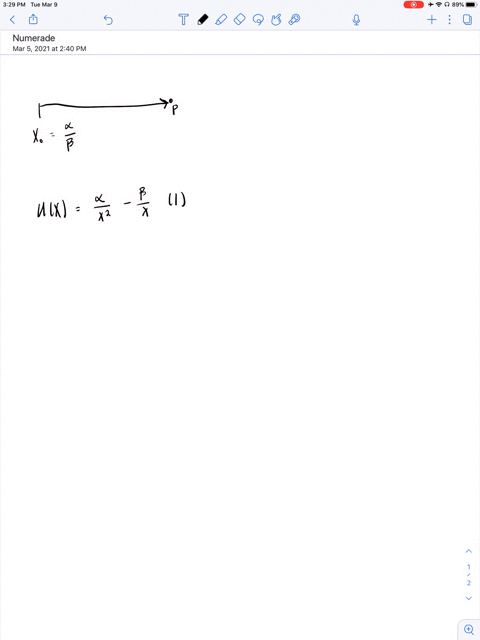

00:01 We're given a proton that's moving in one dimension with a given potential energy function.

00:06 And we have alpha and beta as our positive constants.

00:10 So it's just asking us to rewrite that potential energy function.

00:15 So the first thing is we have this proton right here that is moving.

00:24 And we are given that its starting point x -not is alpha over beta.

00:34 So we're given the potential energy function is equal to u of x is alpha over x squared minus beta over x.

00:44 And we'll call this equation 1.

00:47 So from the given x not, we can rearrange that to solve for beta...

Question

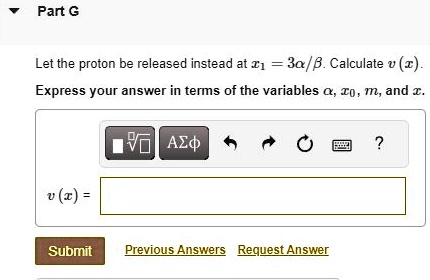

Part G Let the proton be released instead at $x_1 = 3\alpha/\beta$. Calculate $v(x)$. Express your answer in terms of the variables $\alpha$, $x_0$, $m$, and $x$.

Question

Part G Let the proton be released instead at $x_1 = 3\alpha/\beta$. Calculate $v(x)$. Express your answer in terms of the variables $\alpha$, $x_0$, $m$, and $x$.
