A resistor R2=2.0 Ω is mounted in parallel with a resistor R3=9.0 Ω, and this combination is connected in series with a resistor R1=8.0 Ω and a 12 Volts battery. What is the power dissipated in the R2 resistor?
Added by Nancy R.
Step 1
Given R2 = 2.0 Ω and R3 = 9.0 Ω. Using the formula for calculating the total resistance of two resistors in parallel: 1/Rt = 1/R2 + 1/R3 1/Rt = 1/2 + 1/9 1/Rt = 9/18 + 2/18 1/Rt = 11/18 Rt = 18/11 Ω Rt ≈ 1.6363 Ω Show more…
Show all steps
Your feedback will help us improve your experience
Sri K and 72 other Physics 101 Mechanics educators are ready to help you.
Ask a new question
Labs
Want to see this concept in action?
Explore this concept interactively to see how it behaves as you change inputs.
Key Concepts
Recommended Videos
Resistors R1 = 4Ω, R2= 6Ω and R3 = 12 Ω are connected parallel and the combination is connected to a 100V battery. What is the voltage across R2?
Sri K.

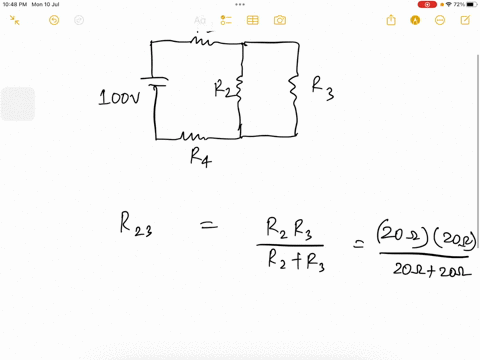

Four resistors are connected to a 100V battery as shown below. What is the power dissipated by the 30 Ω resistor? R1 = 10 ohms R2 = 20 ohms R3 = 20 ohms 100V R4 = 30 ohms
Nishant K.

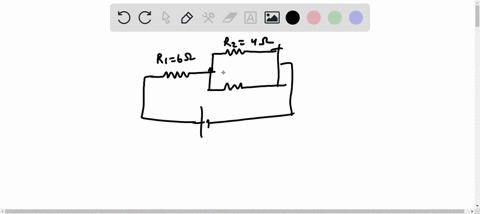

Resistor R1 = 6.0 Ω is connected series to a parallel combination of resistors R2 = 4.0 Ω and R3 = 12.0 Ω. What is the voltage across R1 if R3 carries a current of 0.50 A? 12.0 V 6.0 V 2.0 V 3.0 v
Urvashi A.
